Page 3

background image

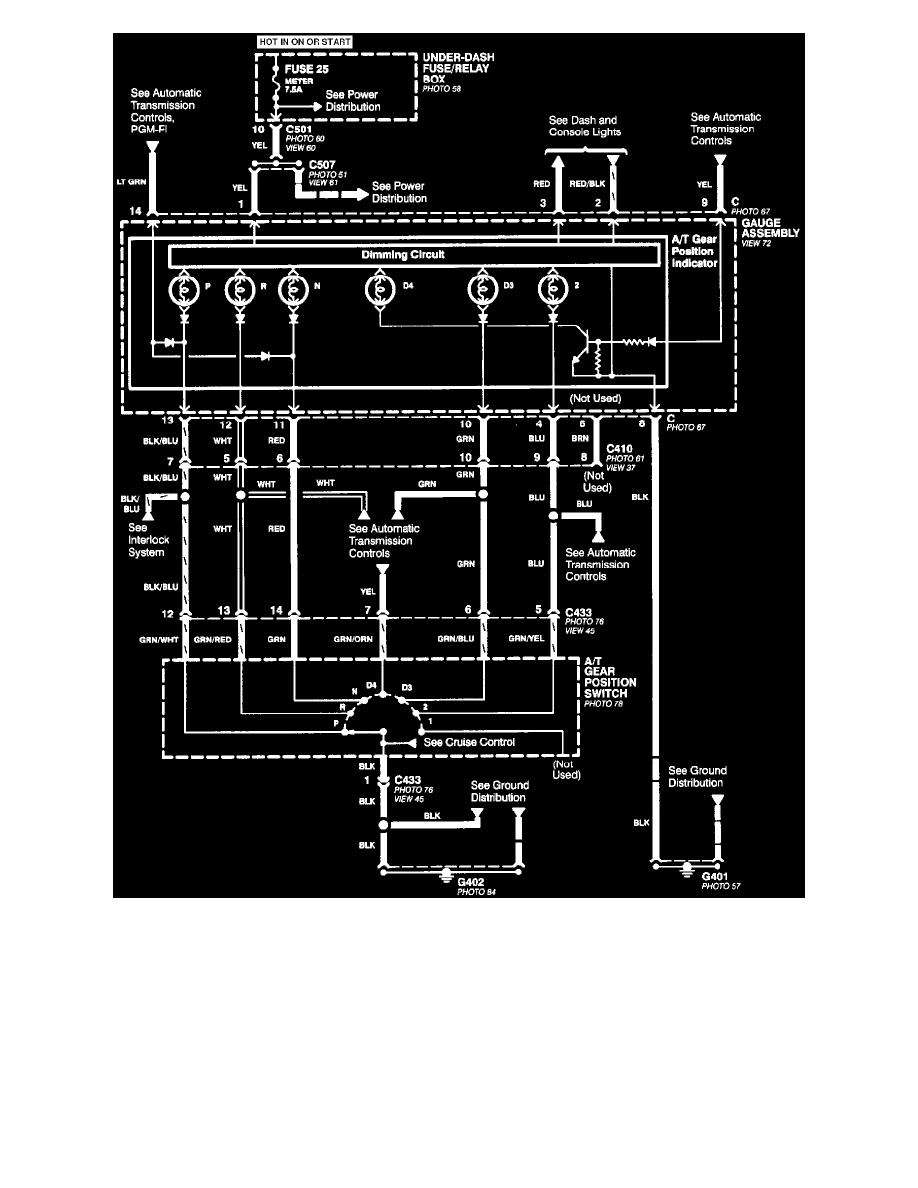

Automatic Transmission Gear Position Indicator

Powertrain Management
Transmission Control Systems
Lamps and Indicators - Transmission and Drivetrain / Lamps and Indicators - A/T / Shift Indicator / Component Information
Diagrams / Diagram Information and Instructions
Page 4420
