Flywheel: Specifications
Torque

Flywheel

Runout on clutch mating surface

Standard or New .......................................................................................................................................................  0.05 mm (0.002 inch) maximum
Service Limit .............................................................................................................................................................................  0.15 mm (0.006 inch)

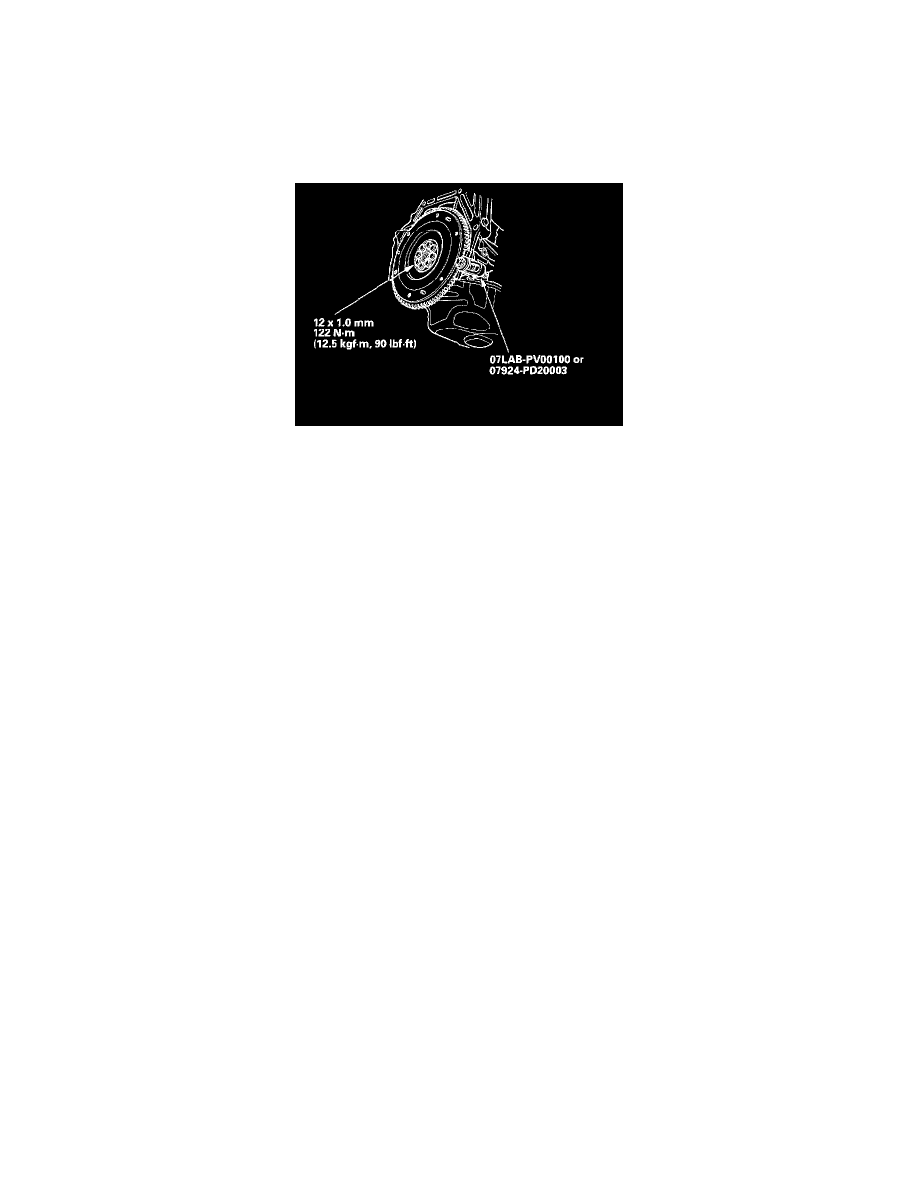

Install the special tool, then torque the flywheel mounting bolts in a crisscross pattern in several steps.
