Fit L4-1.5L (2008)
*Flat Rate Time:
Civic Hybrid - 0.5 hour
Fit - 0.5 hour*
Failed Part:
P/N 39980-SLN-A32
H/C 8643025
Defect Code:
03214
Symptom Code:
03203
Skill Level:
Repair Technician
Out of warranty:
Any repair performed after warranty expiration may be eligible for goodwill consideration by the District Parts and Service Manager or your Zone
Office. You must request consideration, and get a decision, before starting work.
DIAGNOSIS
Diagnose the cause of the DTC with the appropriate troubleshooting procedure from the appropriate service manual.
Is the cause of the DTC a faulty EPS control unit?
Yes - Go to REPAIR PROCEDURE A - CIVIC HYBRID or REPAIR PROCEDURE B - FIT.
No - Repair the vehicle as indicated by the troubleshooting procedure.
REPAIR PROCEDURE A - CIVIC HYBRID
NOTE:
Make sure you have the anti-theft code for the audio system. Write down the audio presets (AM and FM) and the XM audio presets (if equipped).
1. Make sure the ignition switch is turned to LOCK (0), then disconnect the negative cable from the 12 V battery.

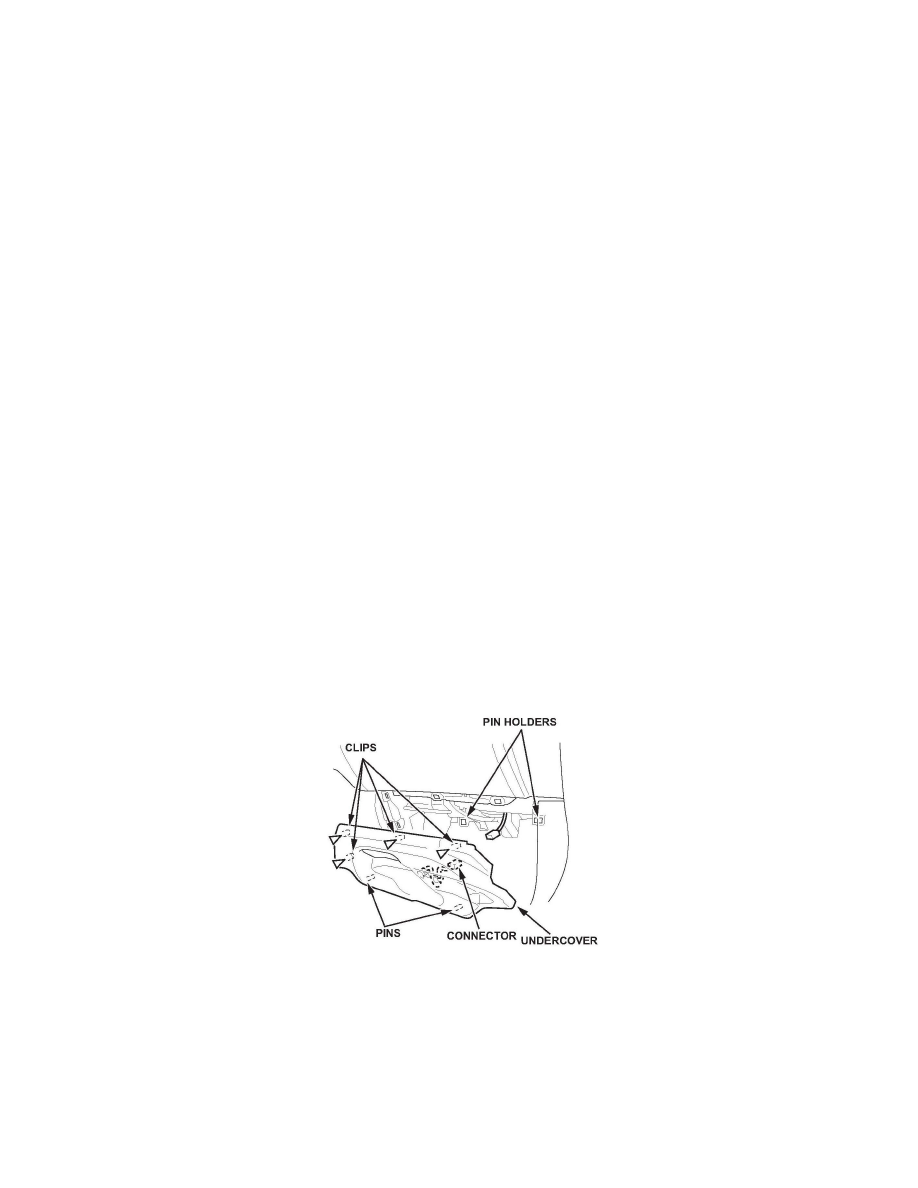

2. Remove the passenger's dashboard undercover:
^
Gently pull out the rear edge to detach the clips.
^
Pull the undercover away to release the pins from the holders.
^
For some models: Disconnect the footwell light connector.
