Odyssey L4-2.2L SOHC (1995)

Page 2
background image

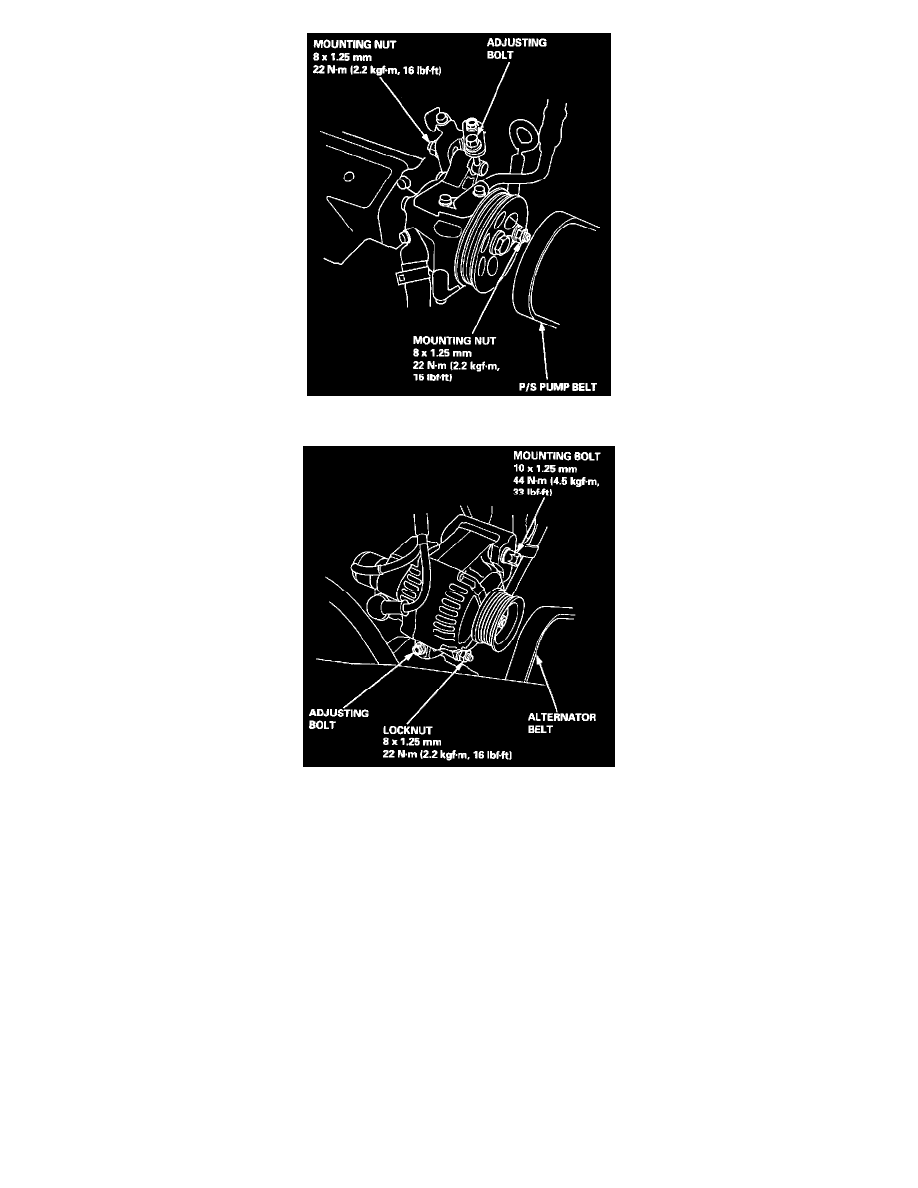

4. Loosen the adjusting bolt and mounting nuts, then remove the power steering (P/S) pump belt.

5. Loosen the adjusting bolt, mounting bolt and locknut, then remove the alternator belt.
