Lighting and HornsLocations · page 1 of 6

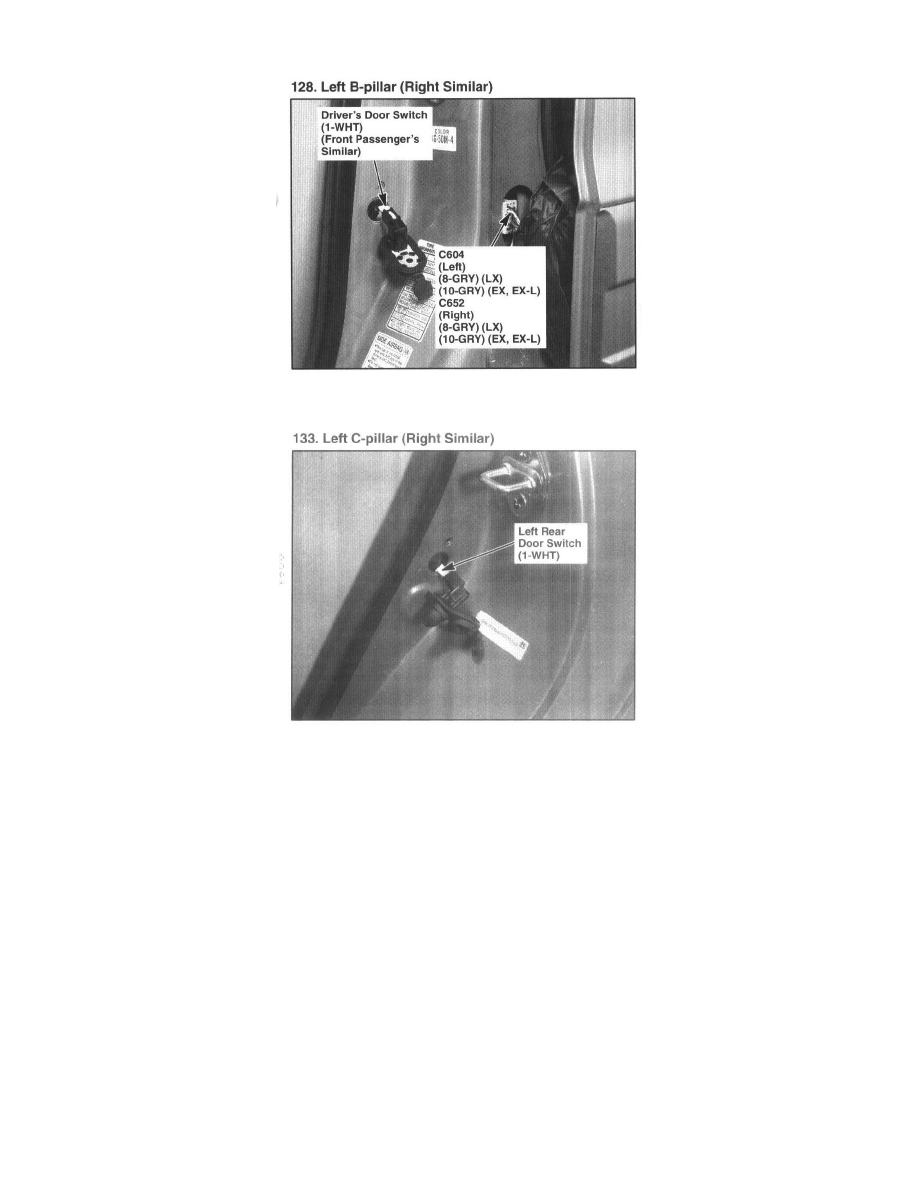

Door Switch: Locations – diagram from the Lighting and Horns chapter of the Honda Pilot V6-3.5L (2004) factory manual.
Door Switch: Locations
128. Left B-pillar (Right Similar)
133. Left C-pillar (Right Similar)
