Wiper Relay: Locations

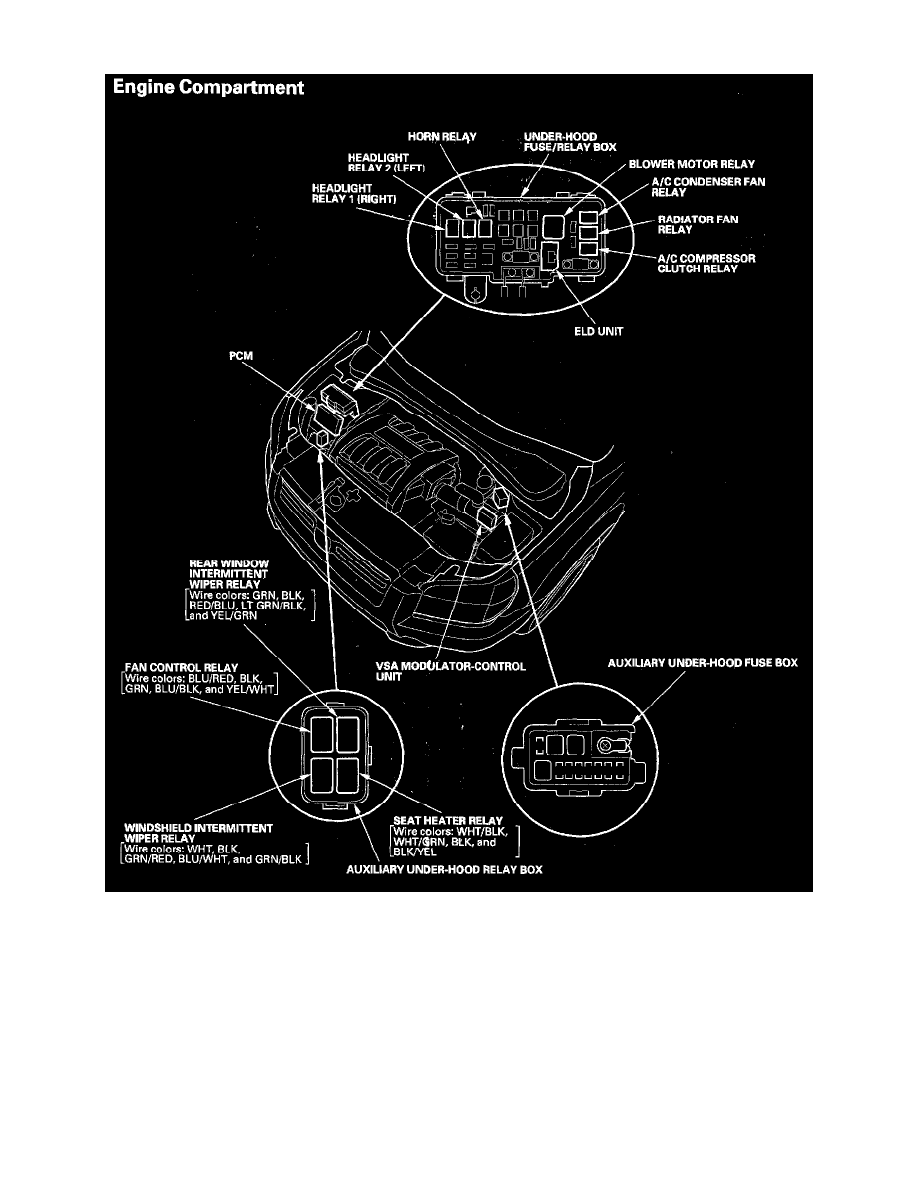

Relay And Control Unit Locations - Engine Compartment

Wiper and Washer Systems
Wiper Relay
Component Information
Locations
