Grille: Service and Repair
- Make
- Honda
- Model
- Pilot 4WD
- Engine
- V6-3.5L
- Year
- 2008
- Section
- Grille › Service and Repair
Body and FrameService and Repair
Grille: Service and Repair
Front Grille Replacement
1. Remove the front bumper.

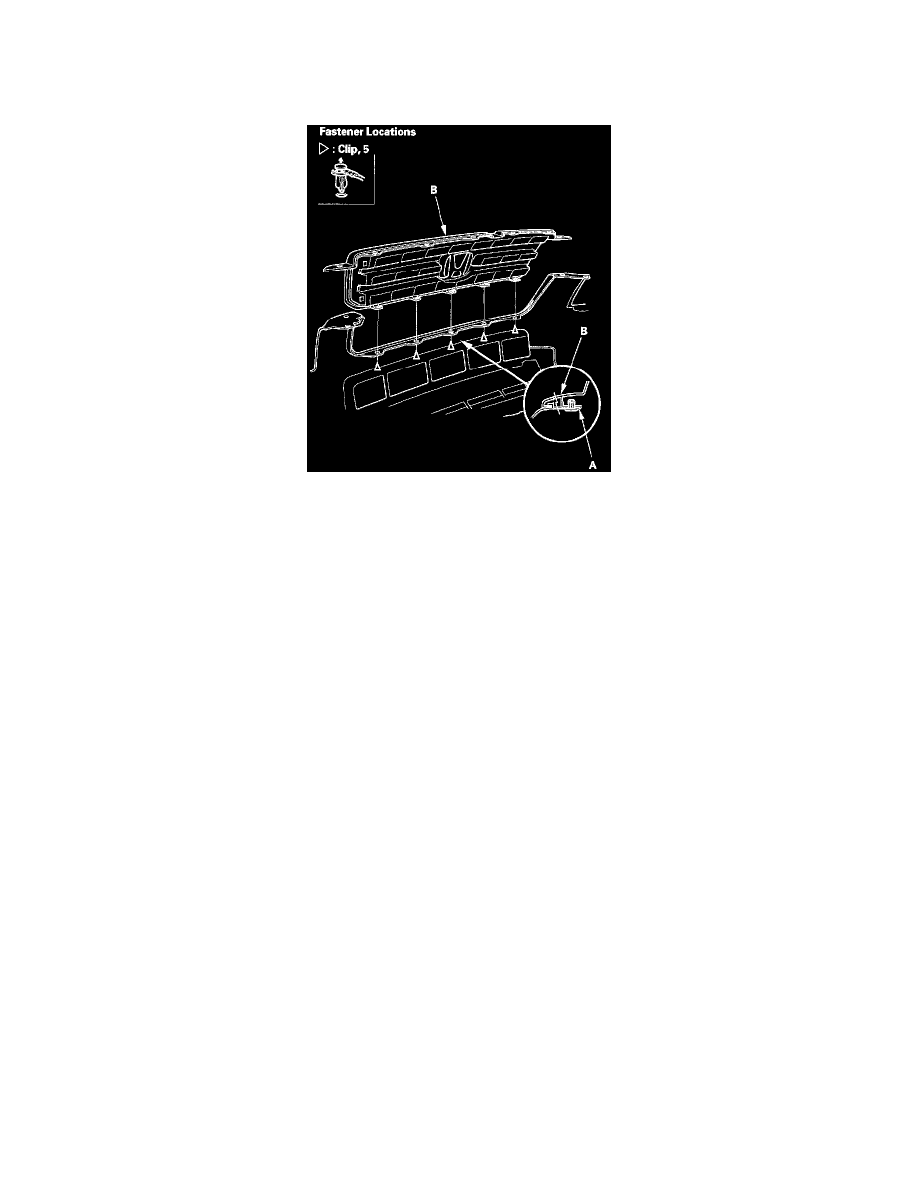

2. Remove the clips, and release the hooks (A), then remove the front grille (B) from the front bumper by pulling it out. Take care not to scratch the
front bumper.
3. Install the grille in the reverse order of removal, and note these items:
-
Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
-
Push the clips into place securely.
