Prelude L4-1958cc DOHC (1989)
NOTE:
-

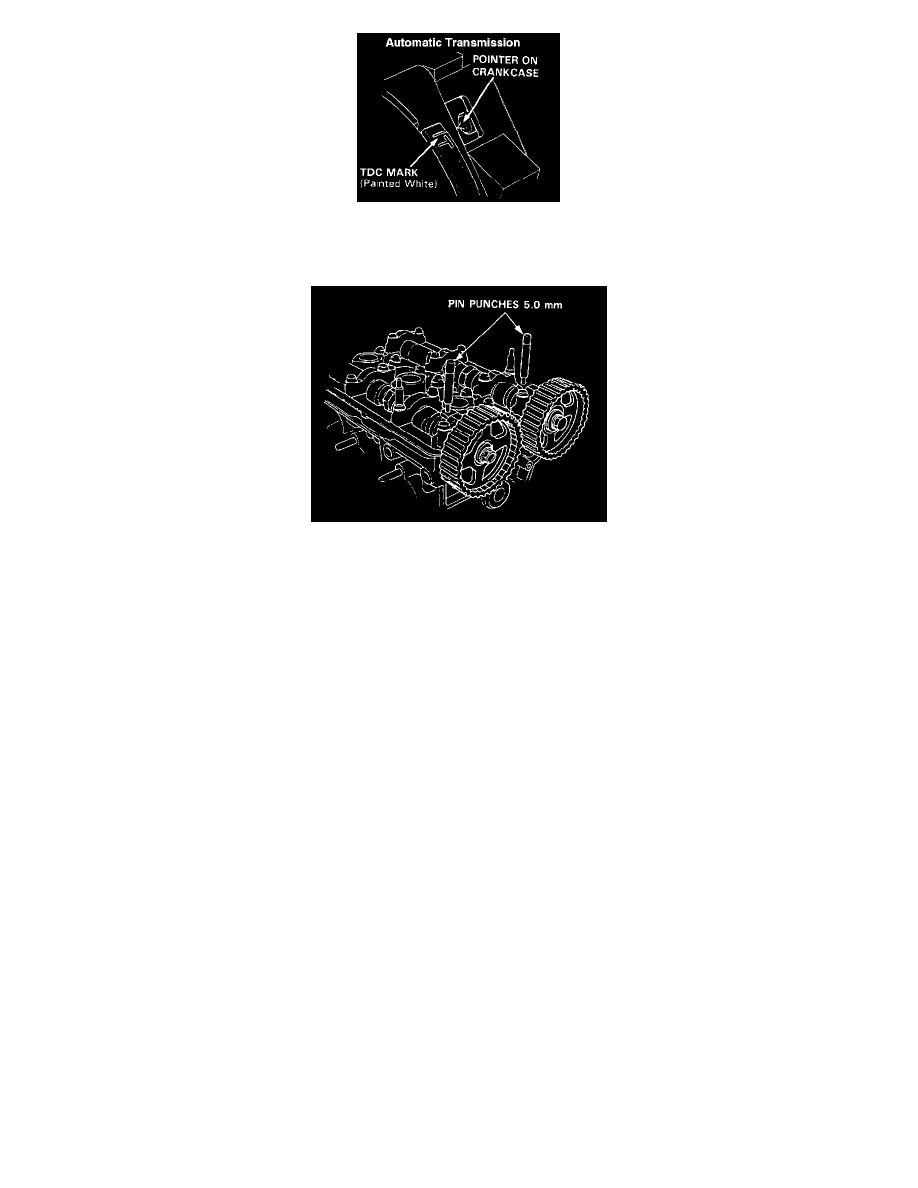

Install the timing belt with the No. 1 piston at Top Dead Center (TDC) on the compression stroke.
-
To set the crankshaft to TDC, install the timing belt guide plates, timing belt drive pulley, crankshaft pulley, and crankshaft pulley bolt.
-
Align the holes in the camshafts with the holes in the No. 1 camshaft holders and install 5.0 mm pin punches in to the holes.
CAUTION: Remove the pin punches after installing the timing belt.
12. Carry out timing belt tension adjustment.
13. After installation. adjust the tension of each belt.
