Prelude L4-2.2L SOHC (1994)

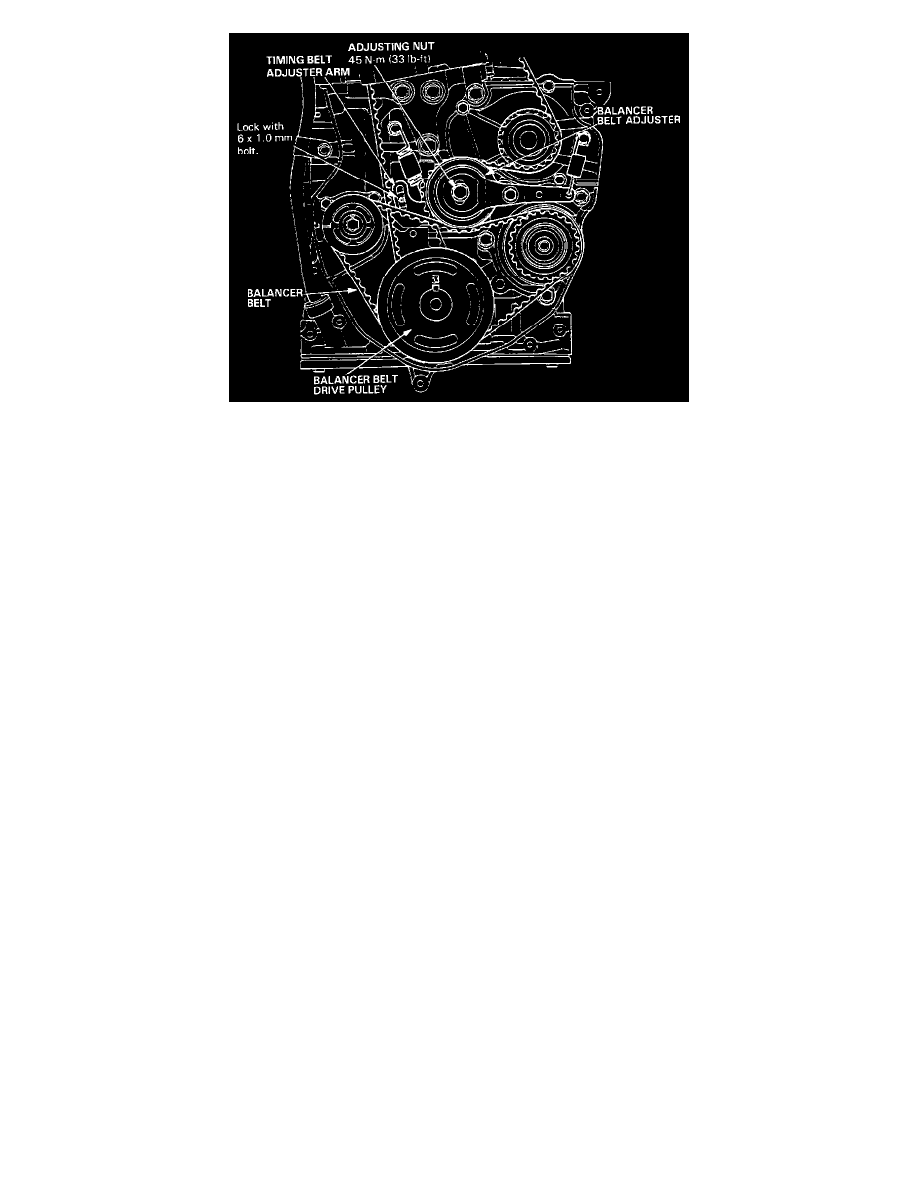

14. Lock the timing belt adjuster arm in place by installing one of a 6 x 1.0 mm lower cover mounting bolts.
15. Loosen the timing belt adjusting nut. Push on the pulley to remove tension from the timing balancer belt, then tighten the adjusting nut.
NOTE: Mark direction of rotation before removing.
16. Remove the timing balancer belt.
NOTE: If you are removing only the timing balancer belt, go to step 22. If you are removing both belts, continue with this procedure.
17. Loosen the 6 x 1.0 mm lock bolt and the adjusting nut. Push on the timing belt adjuster pulley to remove tension from the belt, then tighten the
adjusting nut.
18. Remove the timing belt.
19. Install the timing belt in the reverse order of removal. Adjust the valve clearance.
