Prelude L4-2.3L DOHC (1992)
6. Remove the cylinder head cover.
7. Remove the middle cover.
8. Remove the side engine mount.
9. Remove the dipstick and the pipe.
10. Remove the special bolt and the crankshaft pulley. Remove the two rear bolts from the center beam to allow the engine to drop down and give
clearance to remove the lower cover.
11. Remove the timing belt adjuster rubber seal. Do not loosen the adjusting nut.
12. Remove the lower cover.

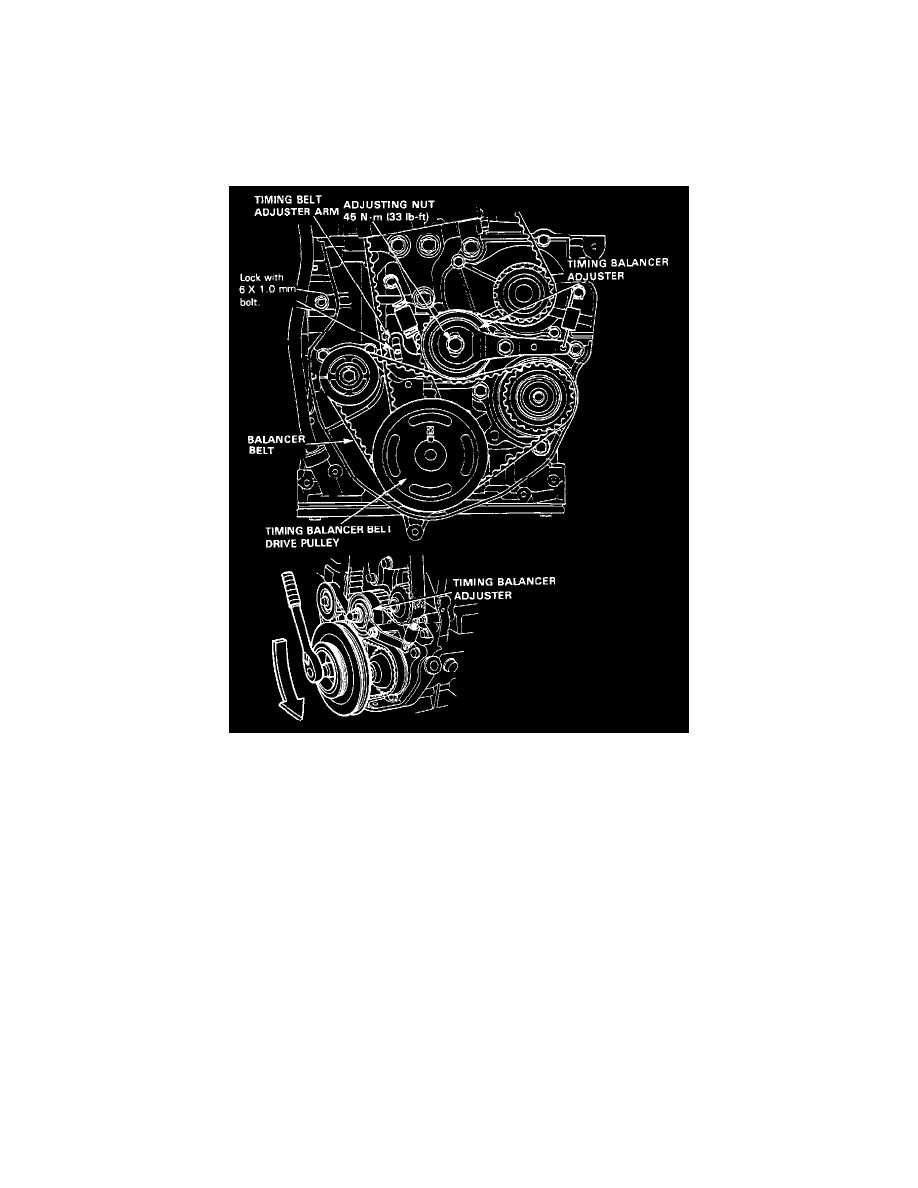

13. Lock the timing belt adjuster arm in place by installing one of the 6 x 1.0 mm lower cover mounting bolts.
14. Loosen the timing belt adjusting nut. Push on the pulley to remove tension from the timing balancer belt, then tighten the adjusting nut.
NOTE: Mark direction of rotation before removing belt.
15. Remove the timing balancer belt.
NOTE: If you are removing only the timing balancer belt, go to step 21. If you are removing both belts, continue with this procedure.
16. Loosen the 6 x 1.0 mm lock bolt and the adjusting nut. Push on the liming belt adjuster pulley to remove tension from the belt, then tighten the
adjusting nut.
17. Remove the timing belt.
