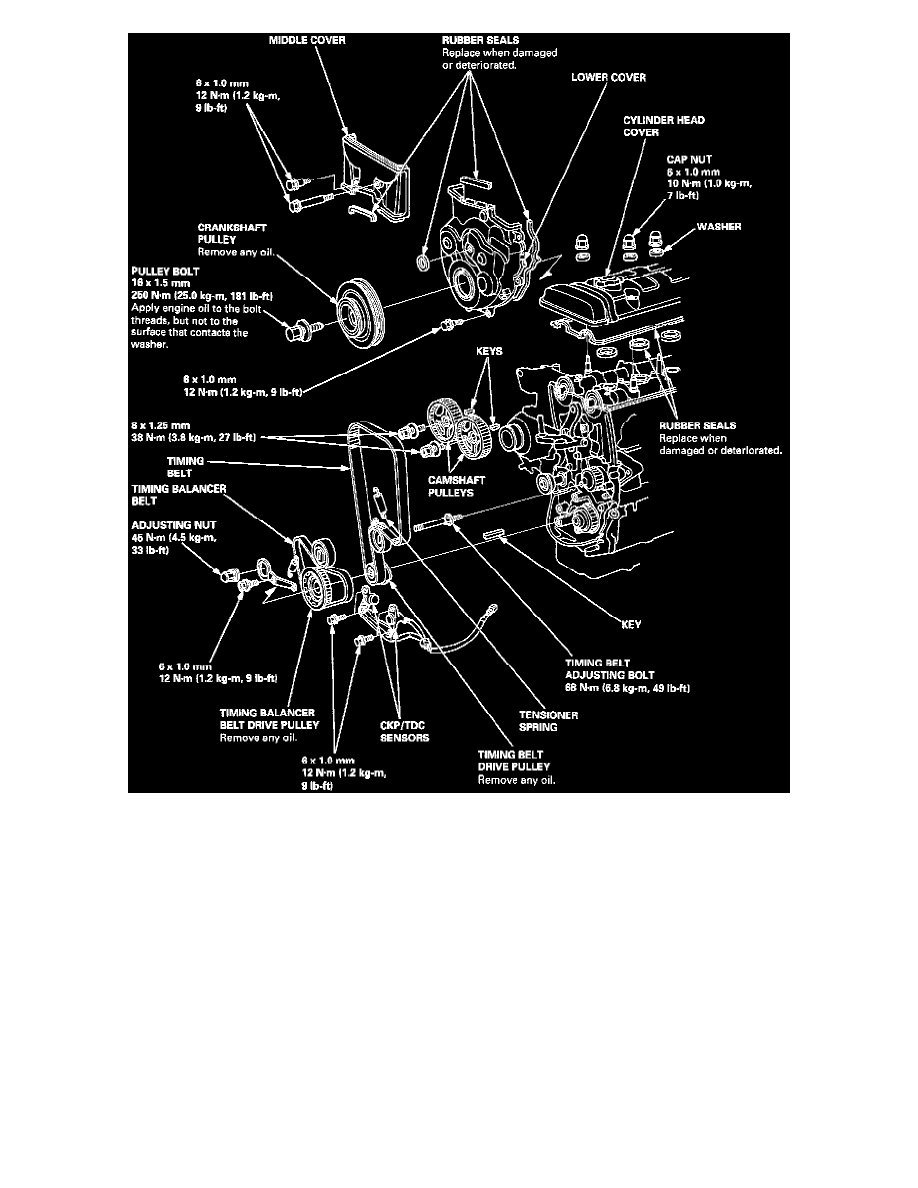

Timing Belt: Diagrams
- Make
- Honda
- Model
- Prelude
- Engine
- L4-2.3L DOHC (16 Valve)
- Year
- 1996
- Section
- Timing Belt › Diagrams
MaintenanceDiagrams · page 1 of 12
/Page-245001.png)
Pinch or Ctrl + scroll to zoom. Double-tap to reset.
