Page 1

background image

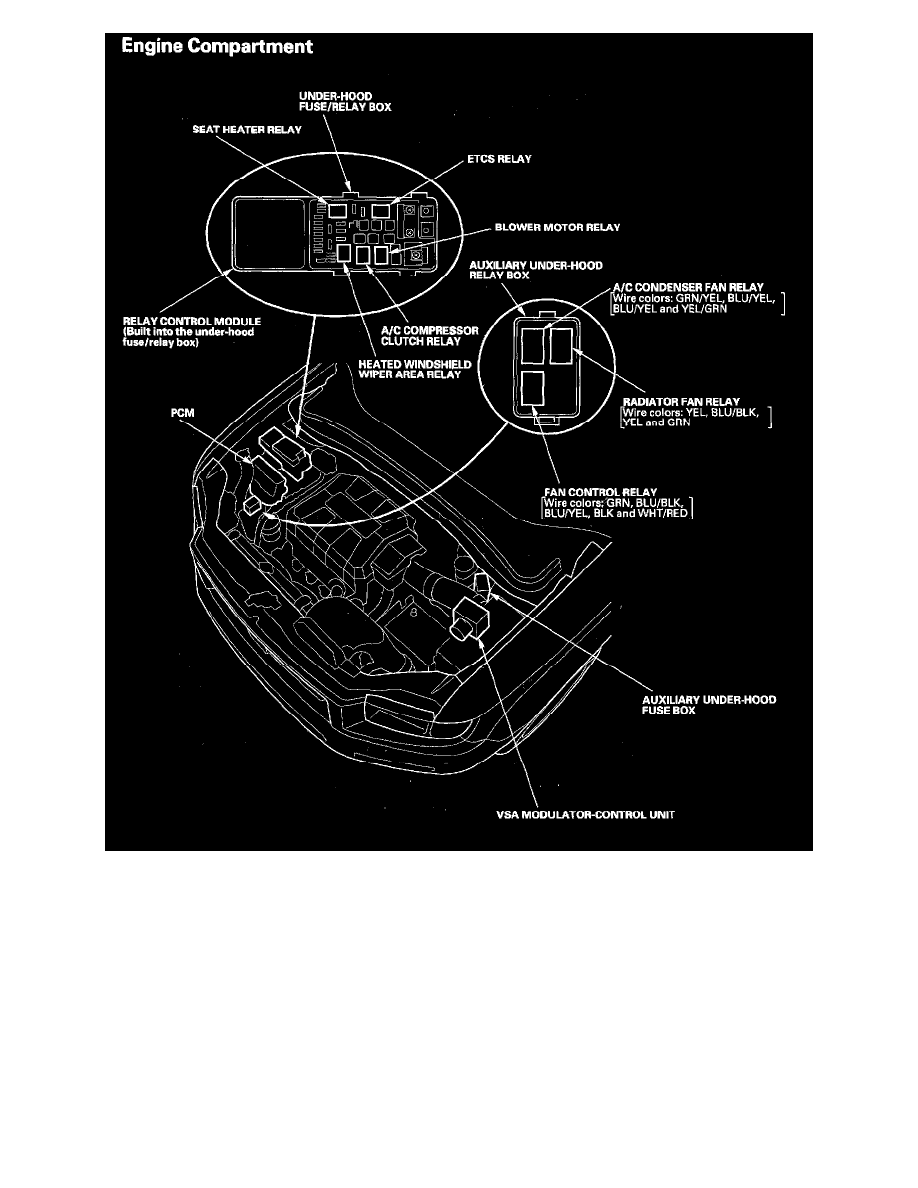

Relay And Control Unit Locations - Engine Compartment

Body and Frame
Seats
Seat Heater Relay
Component Information
Locations
