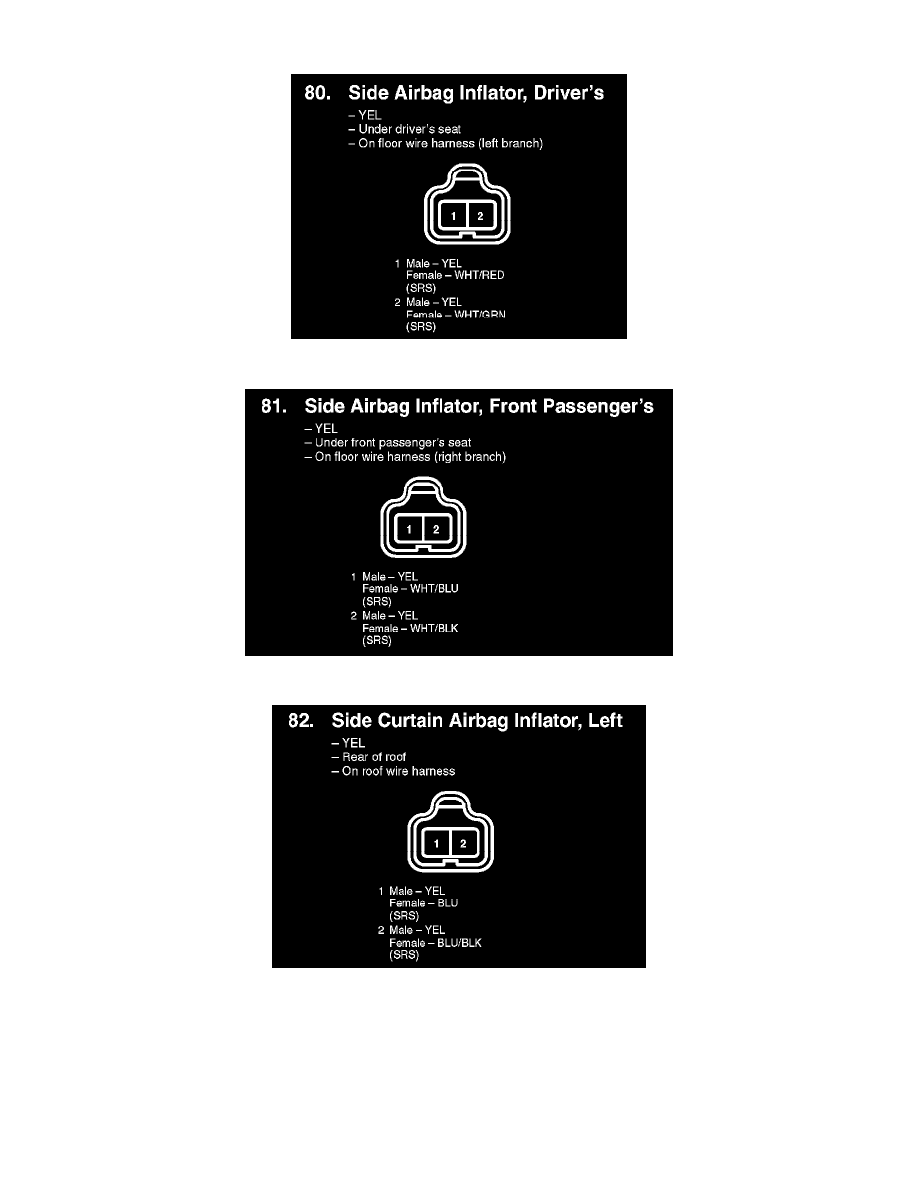

Air Bag: Diagrams

80. Side Airbag Inflator, Driver's

81. Side Airbag Inflator, Front Passenger's

82. Side Curtain Airbag Inflator, Left
