Ridgeline V6-3.5L (2006)
Axle Shaft Assembly: Service and Repair
Front Driveshaft Disassembly
Front Driveshaft Disassembly
Special Tools Required
^
Threaded adapter, 26 x 1.5 mm 07XAC-001030A
^
Slide hammer, 5/8" x 18 UNF, commercially available
Inboard Joint Side

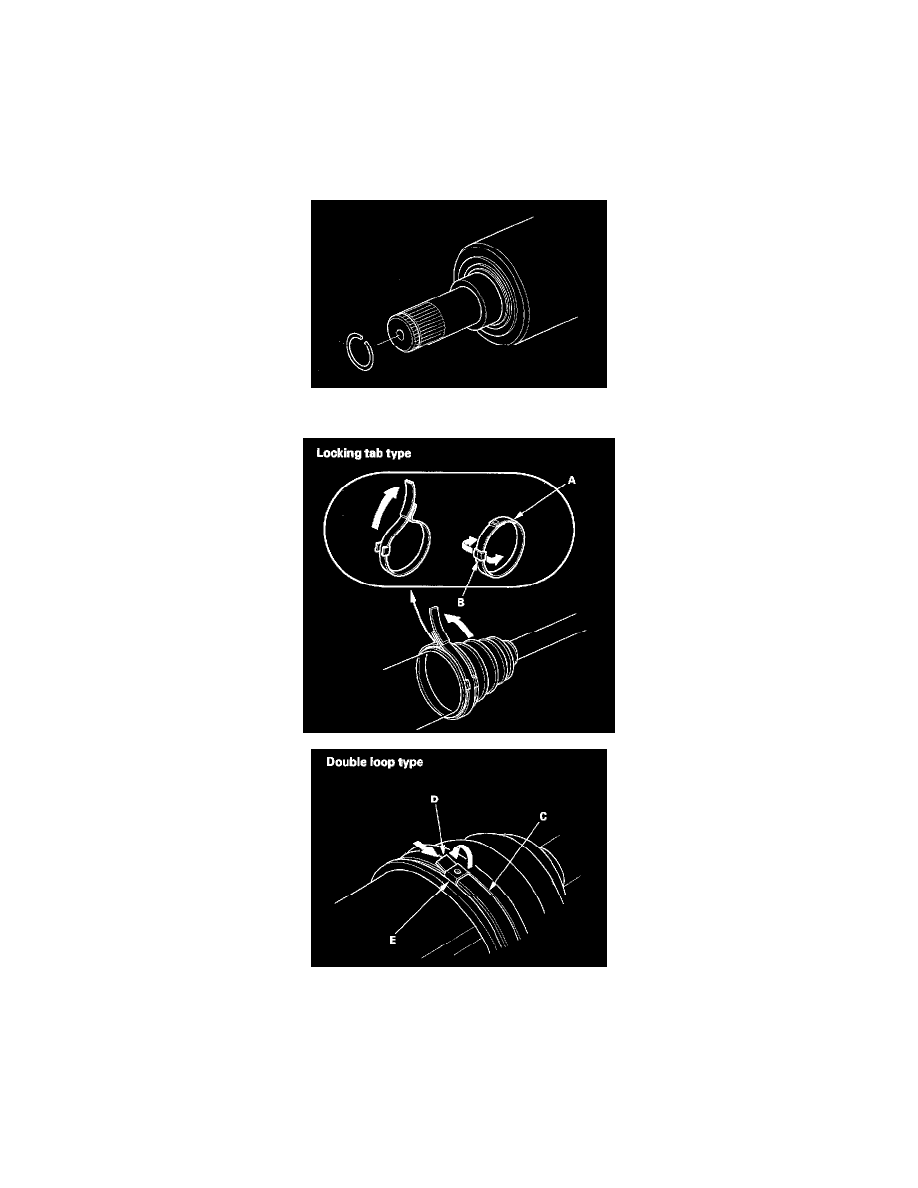

1. Remove the set ring from the inboard joint (left driveshaft).
2. Remove the boot bands. Be careful not to damage the boot.
^
If the boot band is a locking tab type (A), pry up the locking tab (B) with a screwdriver, and lift up the end of the band.
^
If the boot band is a double loop type (C), lift up the band end (D), and push it into the clip (E).
