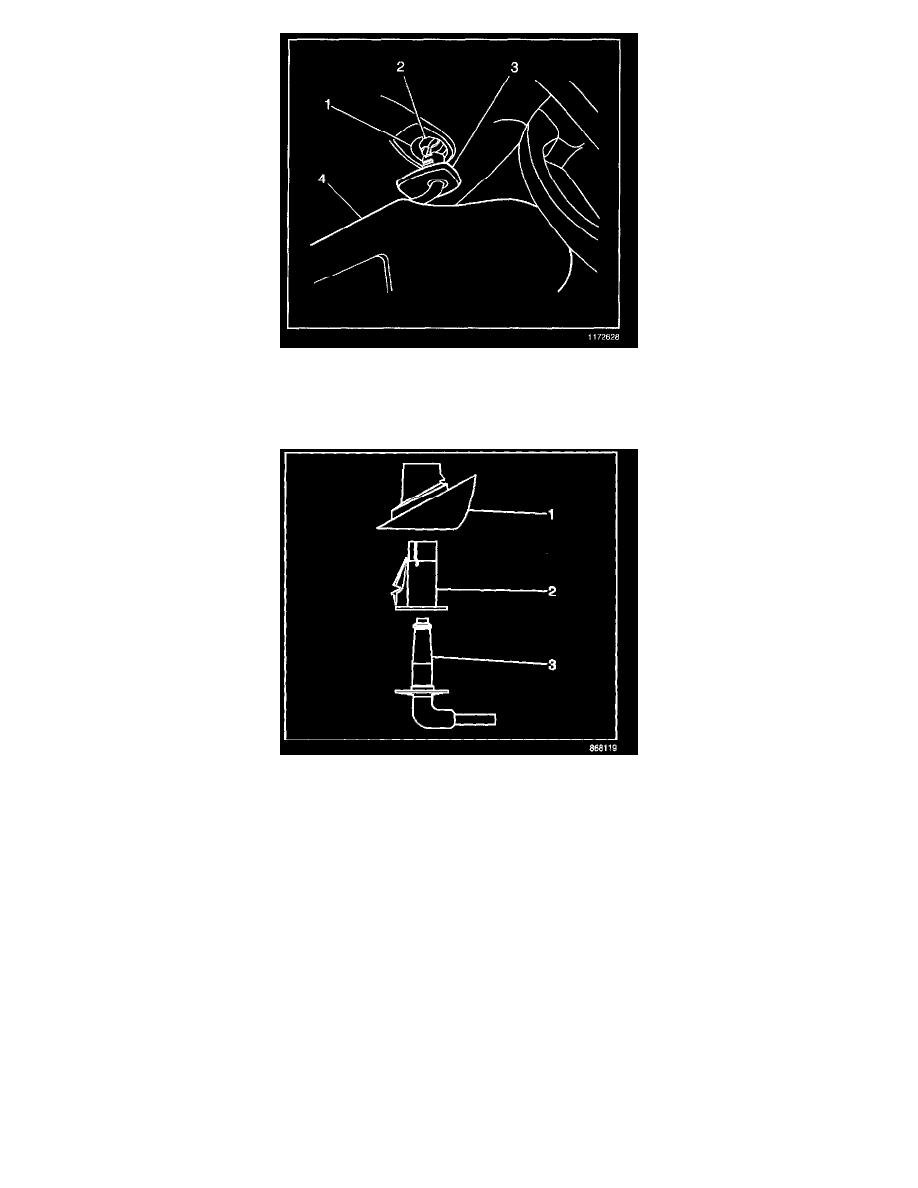

3. Pull down to remove the sunshade (4) and bezel (3) as a complete assembly.
4. Disconnect the electrical connection for the vanity mirror.

INSTALLATION PROCEDURE

1. Connect the electrical connector for the vanity mirror.
2. Pull outward on the bezel (1) and rotate until the elbow (3) and bezel are flush with each other.
