H2 V8-6.2L (2008)
Shift Cable: Service and Repair
Range Selector Lever Cable Replacement
Range Selector Lever Cable Replacement
Removal Procedure
1. Position the transmission shift control lever to the park position.
2. Raise the vehicle. Refer to Lifting and Jacking the Vehicle (See: Maintenance) .
3. Ensure the transmission range selector lever is positioned to mechanical park.

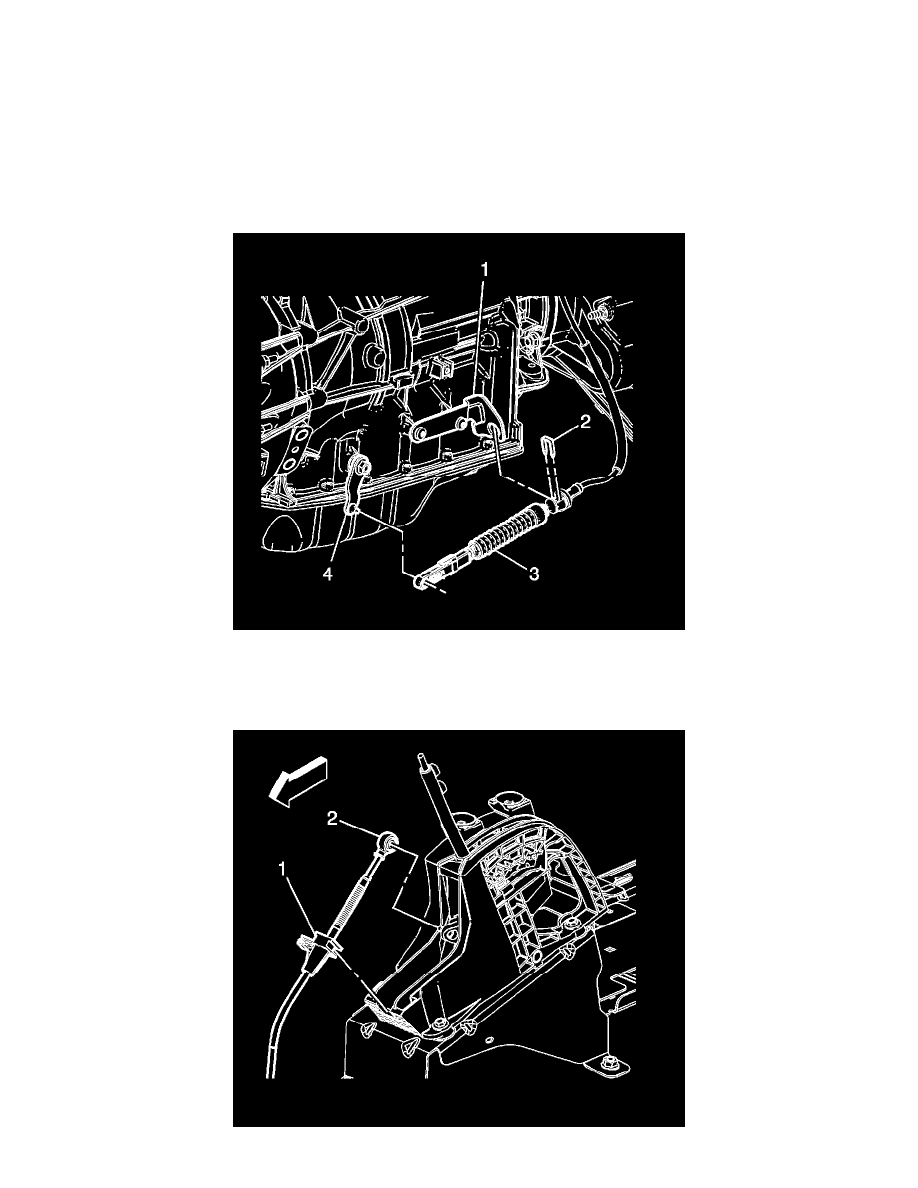

4. Remove the range selector cable retaining clip (2).
5. Remove the range selector cable (3) from the range selector cable bracket (1) at the transmission.
6. Remove the range selector cable (3) from the transmission range selector lever ball stud (4).
7. Lower the vehicle and ensure that the shift lever is still in the park position.
