H3 L5-3.7L (2007)

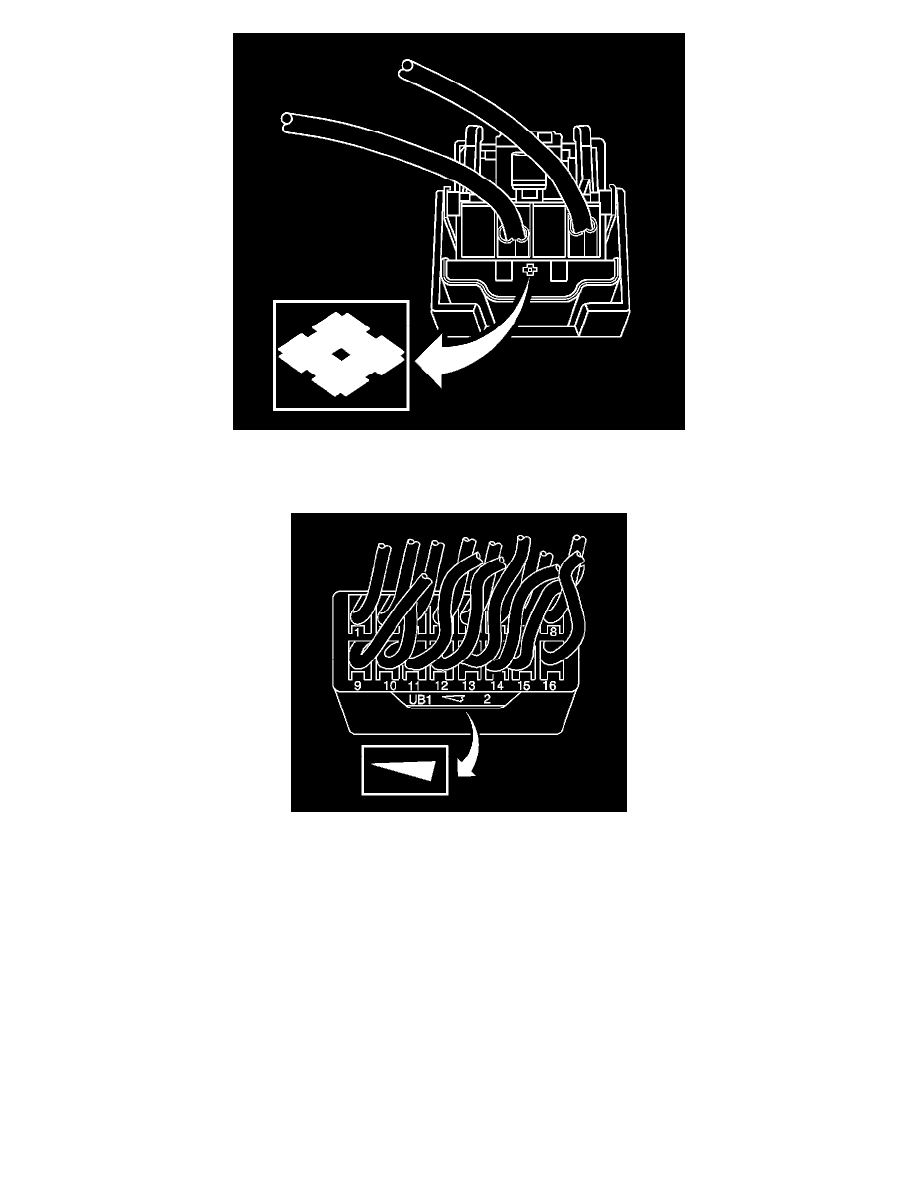

Sumitomo has a unique symbol on their connector and possibly a part number. The symbol is similar to that of a diamond lying on its side, similar
to that shown. The logo could appear anywhere but the most common place is at the wire side of the housing.
* Tyco/AMP has many different and unique connector designs. Some may or may not have identifiable marks on them.
* Yazaki has a wedge or arrow shape, similar to that shown.
Delphi Connectors (Micro .64)
Delphi Connectors (Micro.64)
Tools Required
J-38125 Terminal Repair Kit
Removal Procedure
Follow the steps below in order to remove terminals from Micro.64 connectors.
