H3 L5-3.7L (2007)
Fuse Block: Service and Repair
Underhood Electrical Center or Junction Block Replacement
Removal Procedure
1. Open and support the hood.
2. Disconnect the negative battery cable.

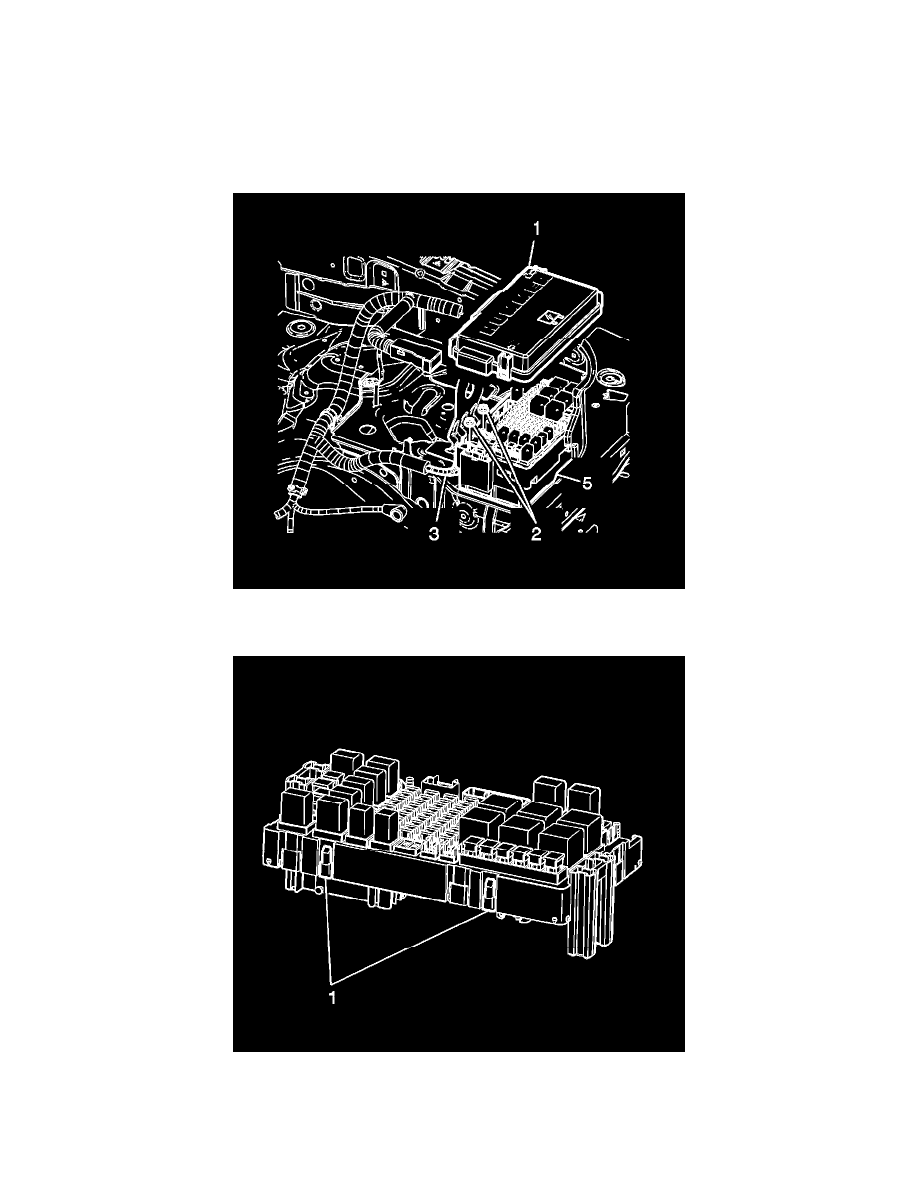

3. Remove the cover (1) from the base (5) of the accessory wiring junction block assembly.
4. Remove the positive battery cable nut (2) and disconnect the cable (3) from the positive terminal stud.
5. Release the 2 locking tabs from the base side as indicated by the arrows of the electrical center (1), as shown.
