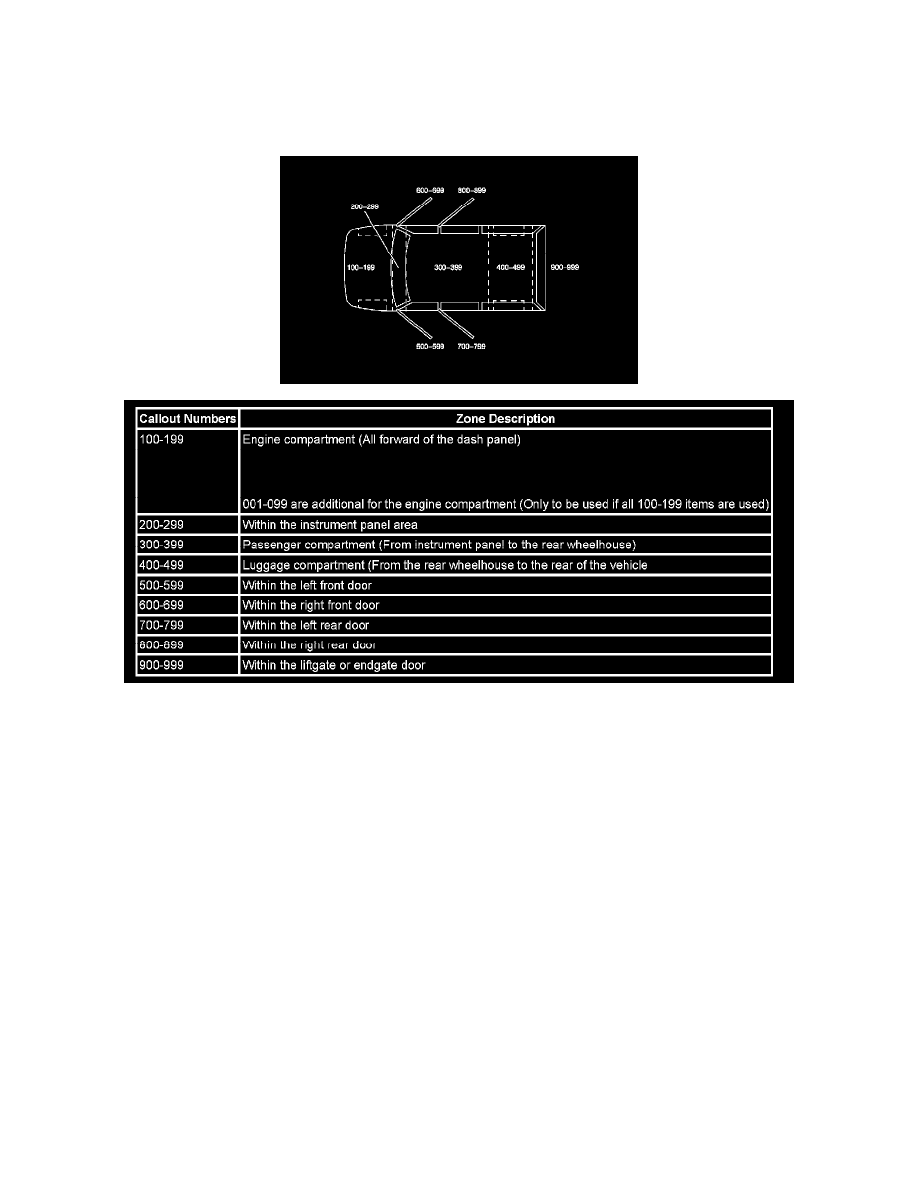

Powertrain ManagementDiagram Information and Instructions · page 73 of 108

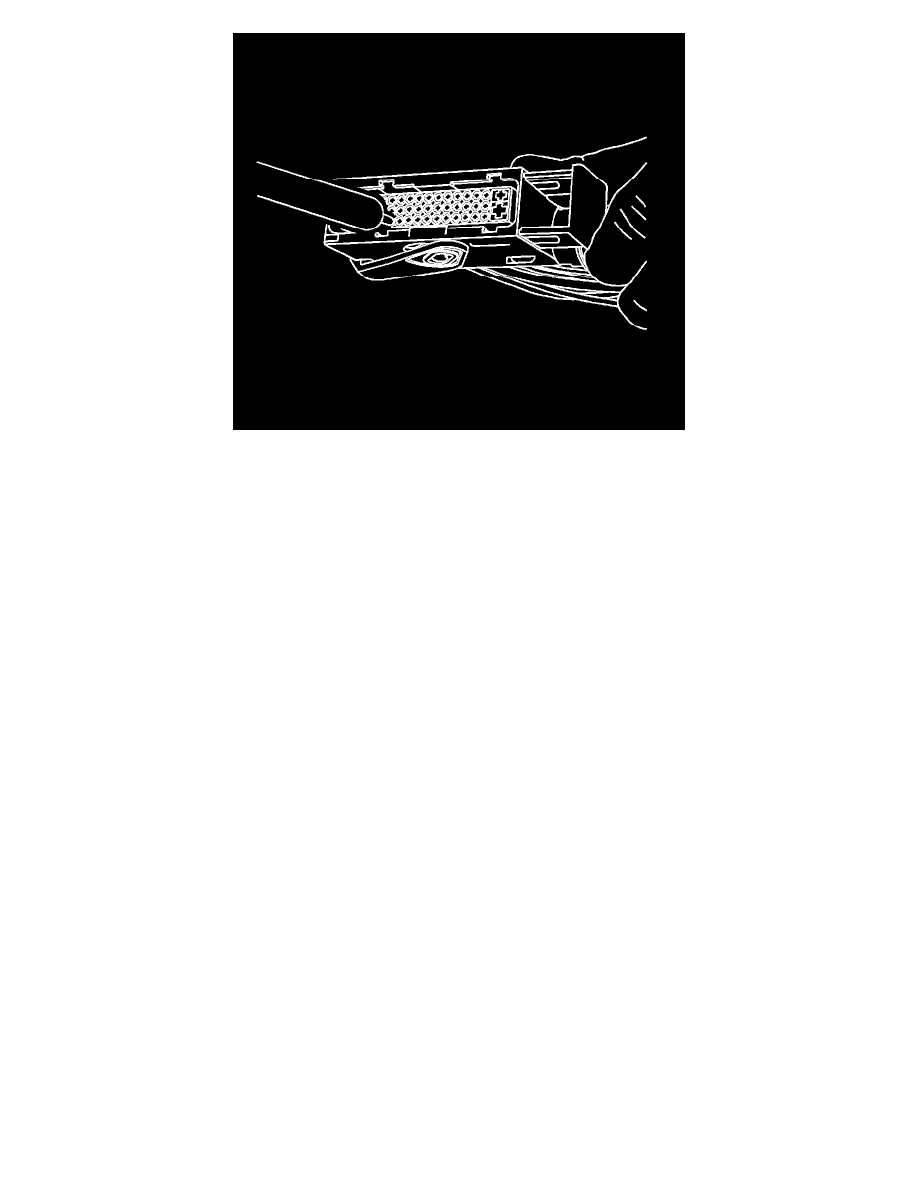

5.  While holding the removal tool in place, gently pull the wire out of the back of the connector. Always remember never use force when pulling a

terminal out of a connector.

Repair Procedure

Use the appropriate terminal and follow the instructions in the J-38125.

Location of the terminal in the repair tray and the proper crimp tool can be found in the appropriate connector end view.

JST Connectors

JST Connectors

Tools Required

J-38125 Terminal Repair Kit

Removal Procedure

1.  While depressing the lock, remove the connector from the component.
