Intake Manifold: Specifications

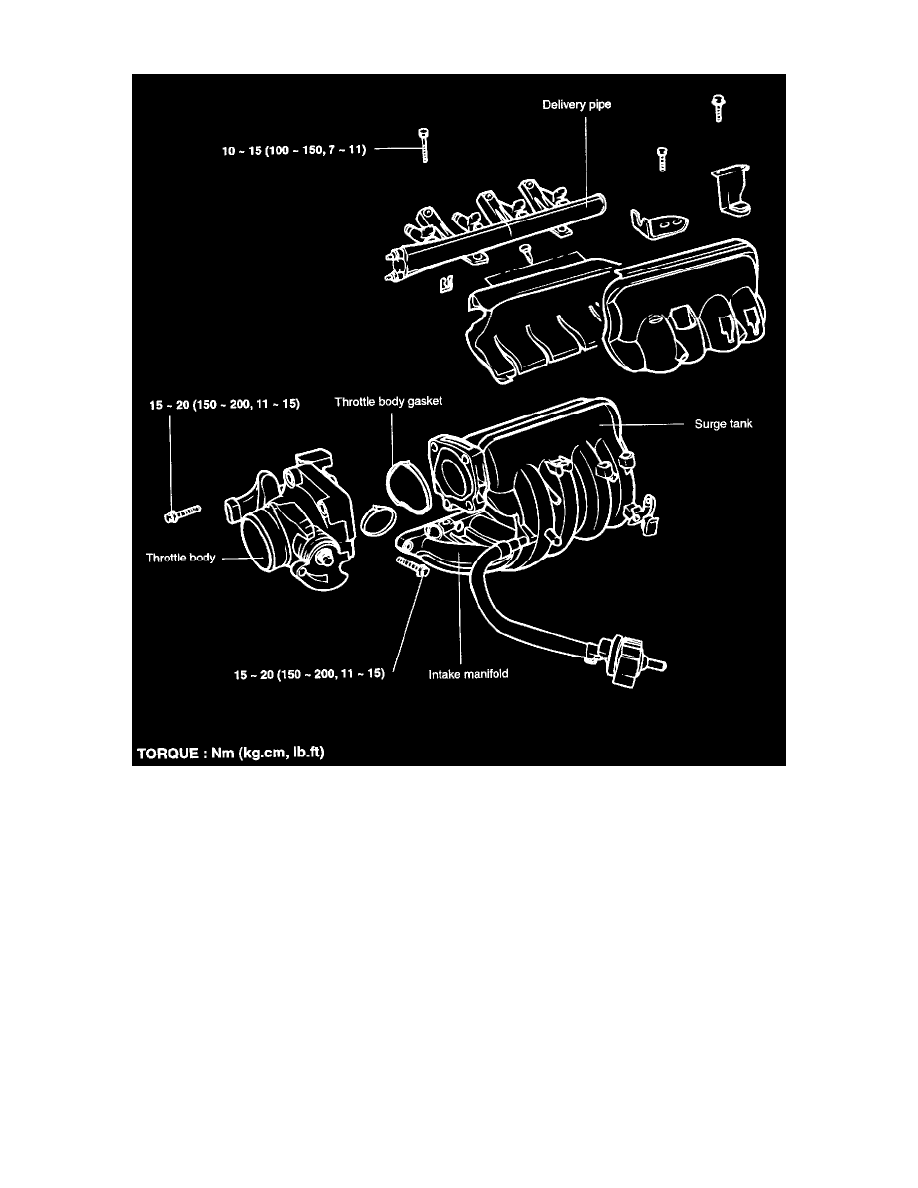

INTAKE MANIFOLD

Intake manifold to cylinder head nuts and bolts.....15-20 Nm (150-200 kg-cm, 11-15 ft. lbs.)
Intake manifold stay to cylinder block bolts.......15-20 Nm (150-200 kg-cm, 11-14 ft. lbs.)
Throttle body to surge tank nuts......15-20 Nm (150-200 kg-cm, 11-14 ft. lbs.)

*

Intake Manifold & Throttle Body bolt tightening sequence not supplied by manufacturer.
