Water Pump: Specifications – Hyundai Accent L4-1.6L (2003)

Water Pump: Specifications

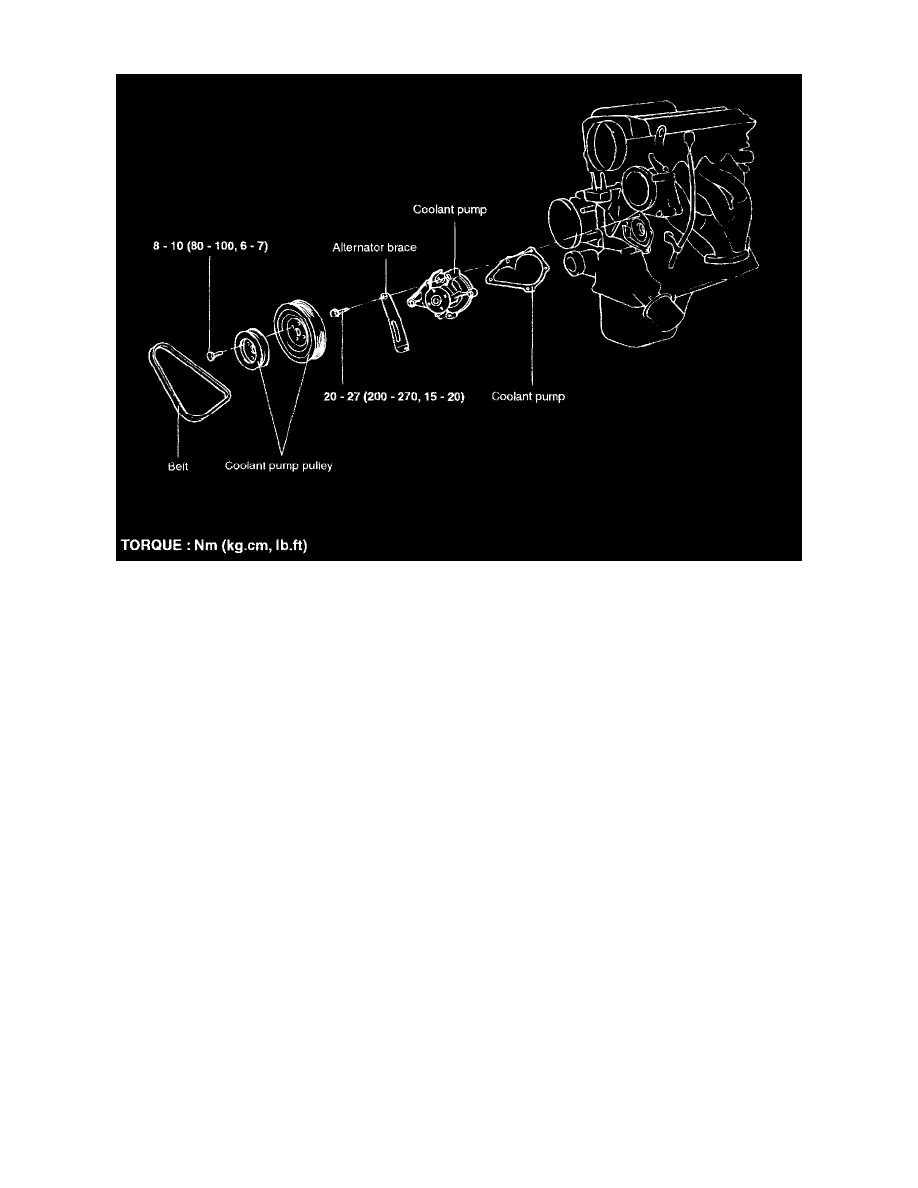

ENGINE COOLANT PUMP

Coolant Pump Type ......................................................................................................................................................................  Centrifugal Type Impeller
Coolant pump pulley  ...............................................................................................................................................  8-10 Nm (80 - 100 kg-cm, 6 - 7 ft. lbs.)
Coolant pump bolt  ................................................................................................................................................  12-15 Nm (120-150 kg-cm, 9-11 ft. lbs.)
