Accent L4-1.6L (2003)

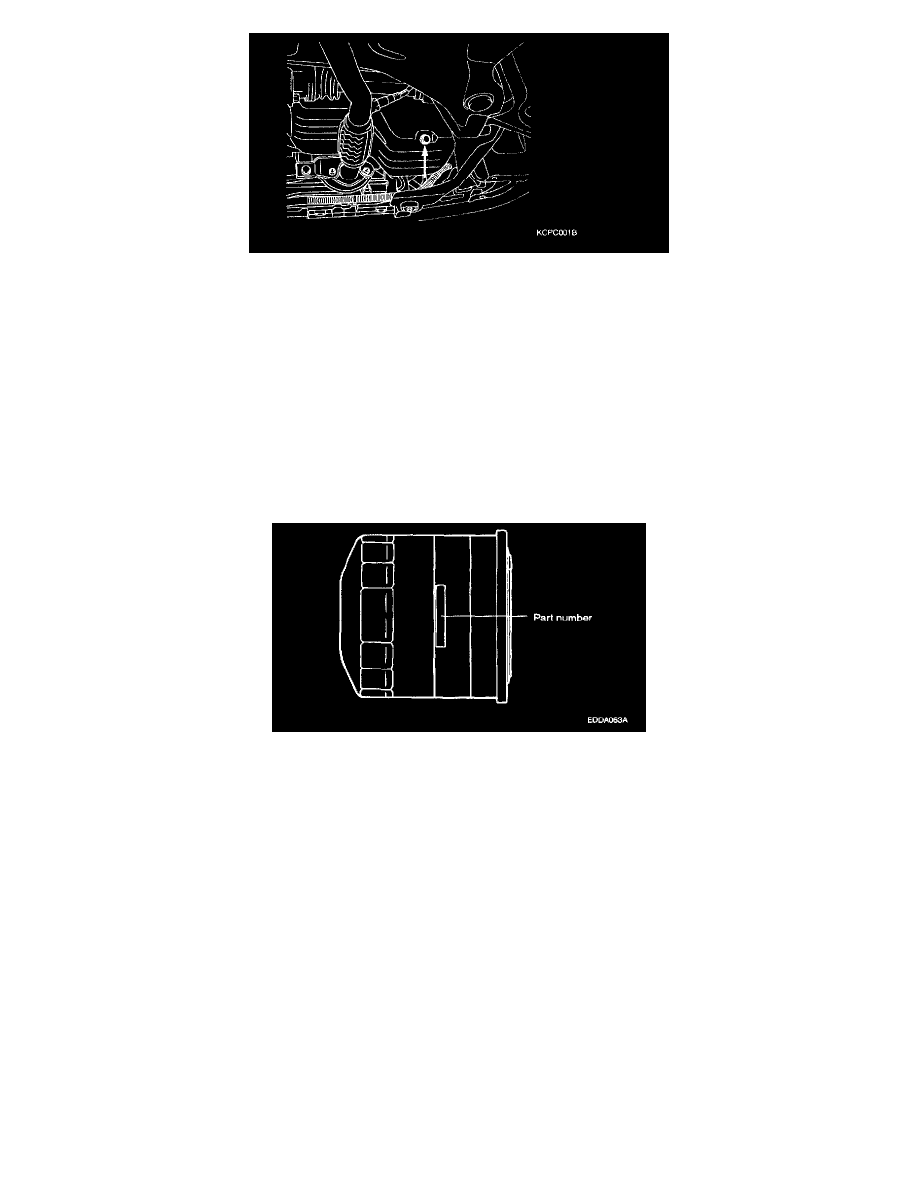

3. Remove the oil filter cap and the drain plug (on the oil pan). Drain the engine oil.
4. Install and tighten the drain plug to the specified torque.
Tightening torque
Drain plug: .........35 - 45 Nm (350 - 450 kg-cm, 24 - 33 ft. lbs.)
5. Fill the crankcase with fresh engine oil through the oil filler cap opening.
Drain and Refill Without oil filter: ........3.0 liter (3.17 U.S.qts, 2.64 Imp.qts.)
Drain and Refill With oil filter: .........3.3 liter (3.48 U.S.qts, 2.64 Imp.qts.)
6. Install the oil filler cap.
7. Start and run the engine.
8. Turn off the engine and then check the oil level. Add oil if necessary.
FILTER SELECTION
All Hyundai engines are equipped with a high quality, disposable oil filter. This filter is recommended as a replacement filter on all vehicles. The quality
of replacement filters varies considerably. Only high quality filters should be used to assure the most efficient service. Make sure that the rubber gasket
from the old oil filter is completely removed from the contact surface on the engine block before installing the new filter.
PROCEDURE FOR REPLACING THE OIL FILTER
CAUTION: Be careful not to burn yourself, as the engine and engine oil are hot.
1. Use a filter wrench to remove the oil filter.
