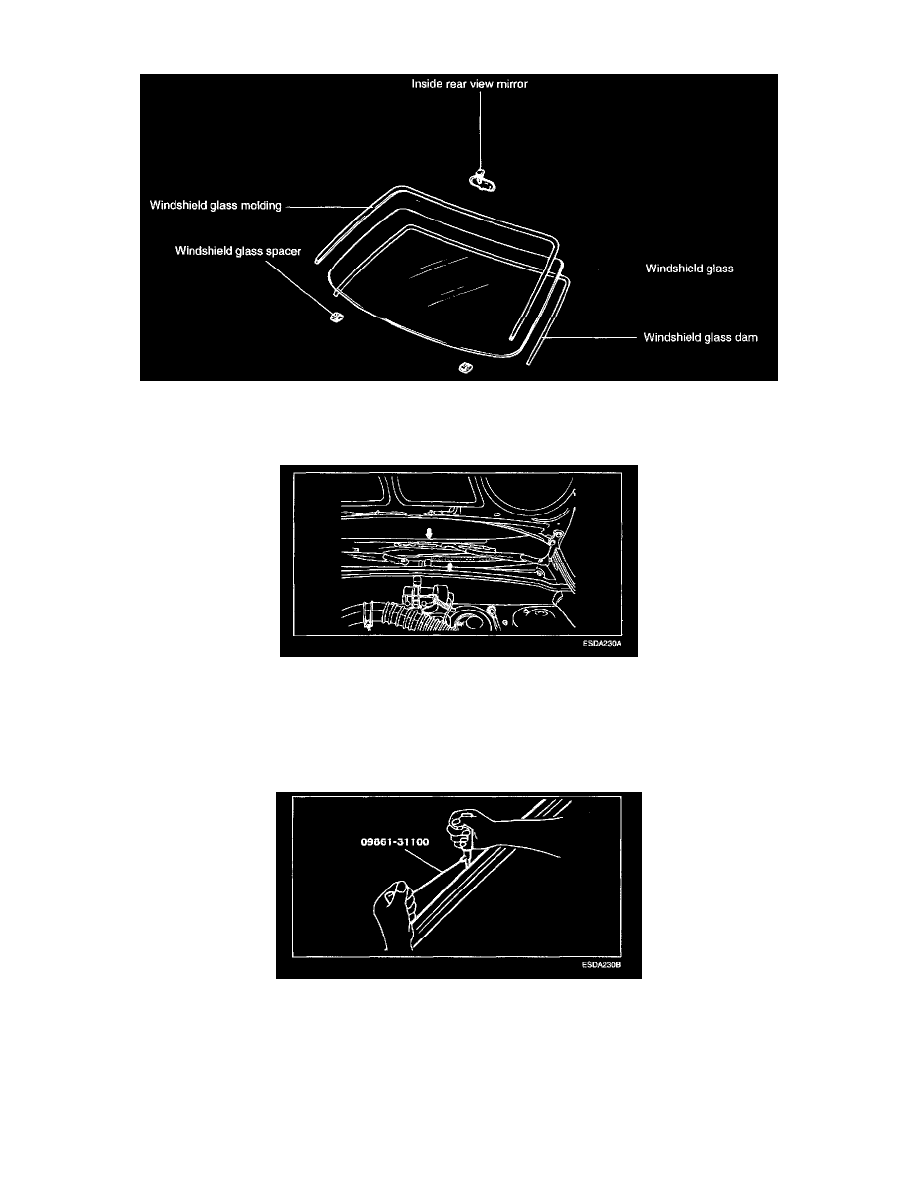

Windshield: Service and Repair

Windshield Glass

REMOVAL

1. To remove the windshield, first remove the following parts

1. Front pillar trims
2. Inside rear view mirror
3. Wiper arms
4. Cowl top cover
5. Windshield glass molding

2. Use the Special Tool (09861-31100) to cut through the sealant.
