Accent GL L4-1.6L (2001)

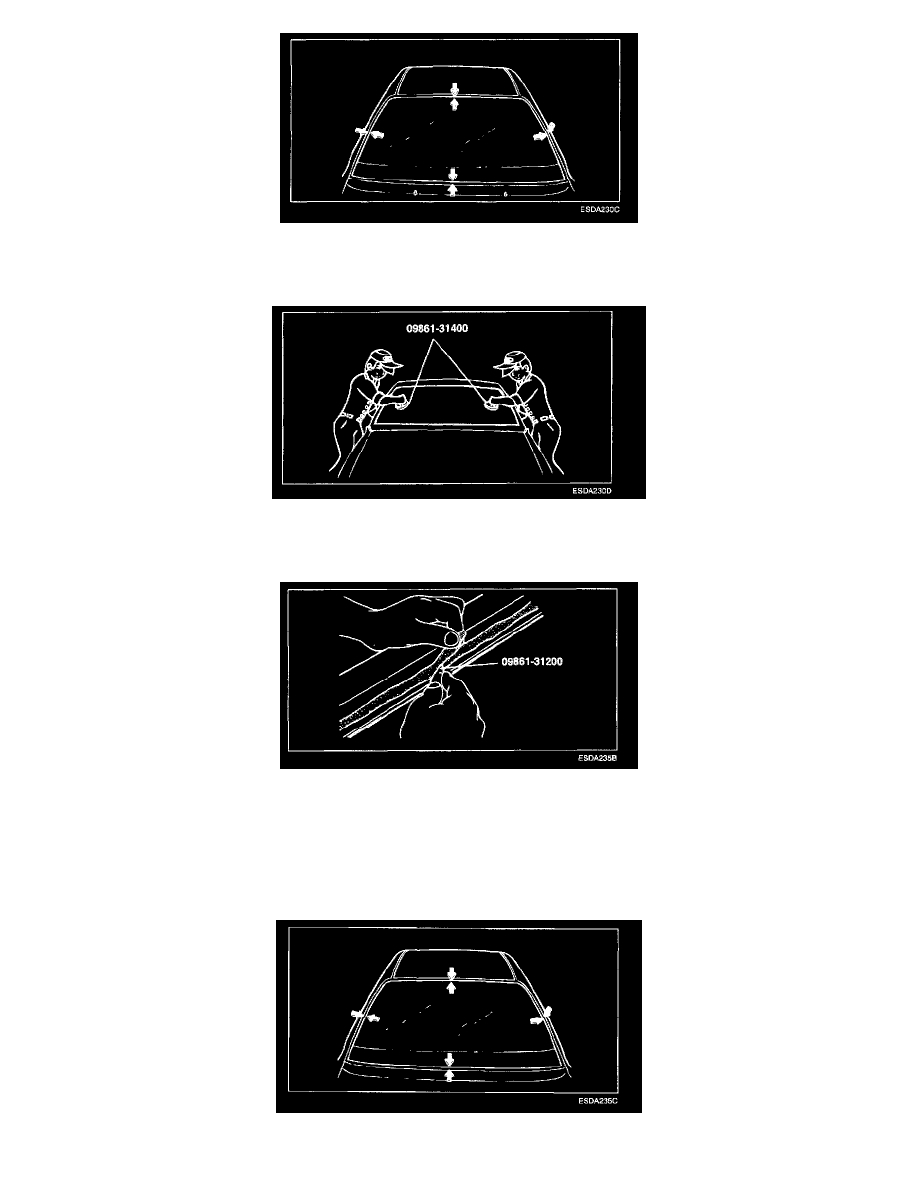

3. Make mating marks on the glass and body if the glass is to be reinstalled.
NOTE: Use chalk or equivalent to make mating marks on the glass and body
4. Take out the windshield glass with Special Tool, Glass Holder.
INSTALLATION
1. Using a cutter knife or the Special Tool, scrape the old sealant smoothly to a thickness of about 2 mm (0.08 in.) on the bonding surface around the
entire windshield flange.
CAUTION: Be careful not to remove more adhesive than necessary, and also not to damage the paintwork on the body surface with the knife. If
the paintwork is damaged, repair the damaged area with touch-up paint.
2. Clean the body bonding surface with a sponge dampened in alcohol or wax and grease remover.
3. Center a new windshield glass in the opening. Mark the location by scribing lines across the glass and body with a grease pencil at the four points
