Accent GS Coupe L4-1495cc 1.5L SOHC MFI (1999)

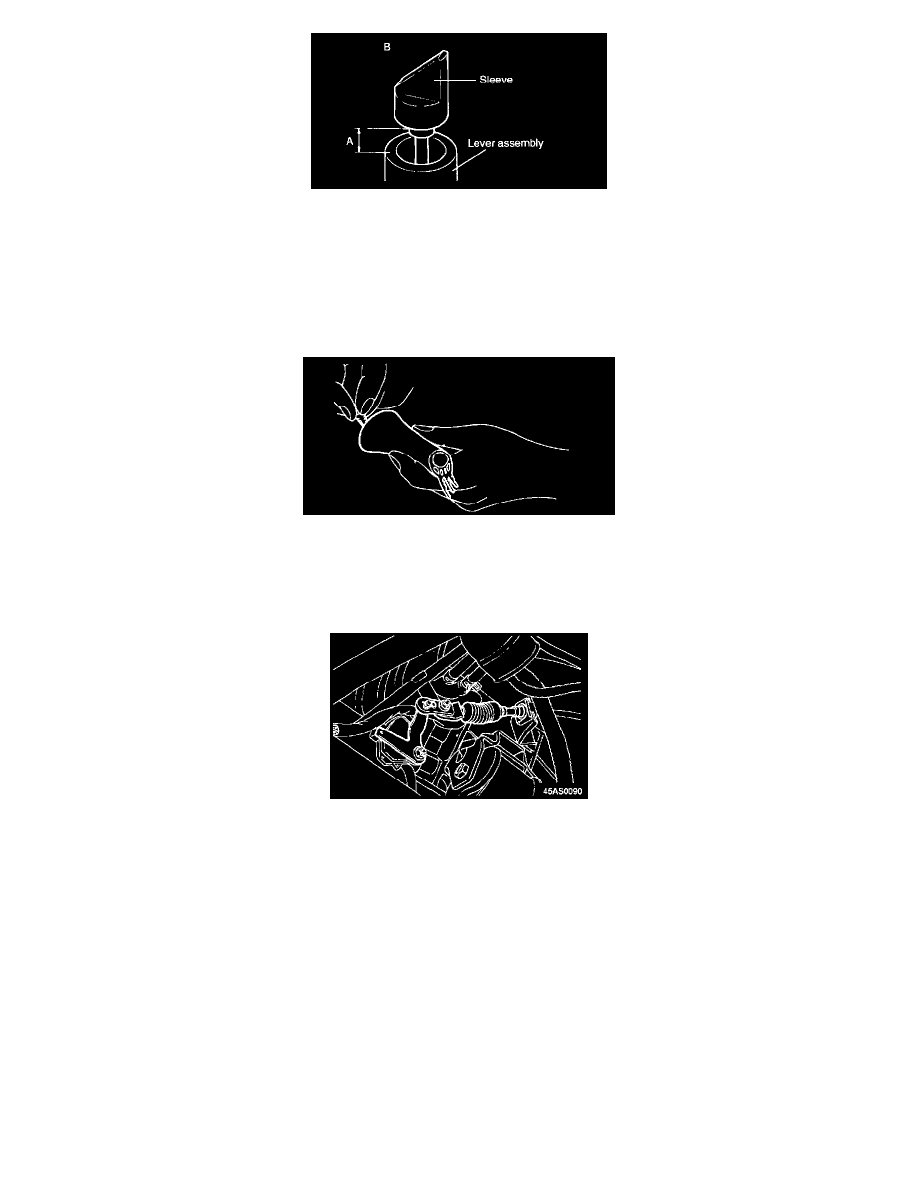

9. Place the shift lever in the "N" position, and then turn the cam adjusting so that the clearance between the cam adjusting and the lever assembly
end in within the standard value.
Standard value (A): 15.2 - 15.9 mm (0.598 - 0.625 inch)
NOTE: Be sure to face B of the adjusting cam to the push button (driver's side).
10. Insert the O/D switch wiring to the shift lever cover, and then assemble the pin into the O/D switch connector.
11. Install the selector knob assembly.
NOTE: When replacing with new one, remove the new 3 connector pins first.
12. Install the console box.
ADJUSTMENT OF CONTROL CABLE
1. Eliminate slack from the control cable with the adjusting flange nut and check that the select lever operates smoothly.
2. Driving the car, check that the transaxle is set in the proper range when the select lever is shifted to each position.
