MaintenanceSpecifications · page 9 of 11

2 of 2

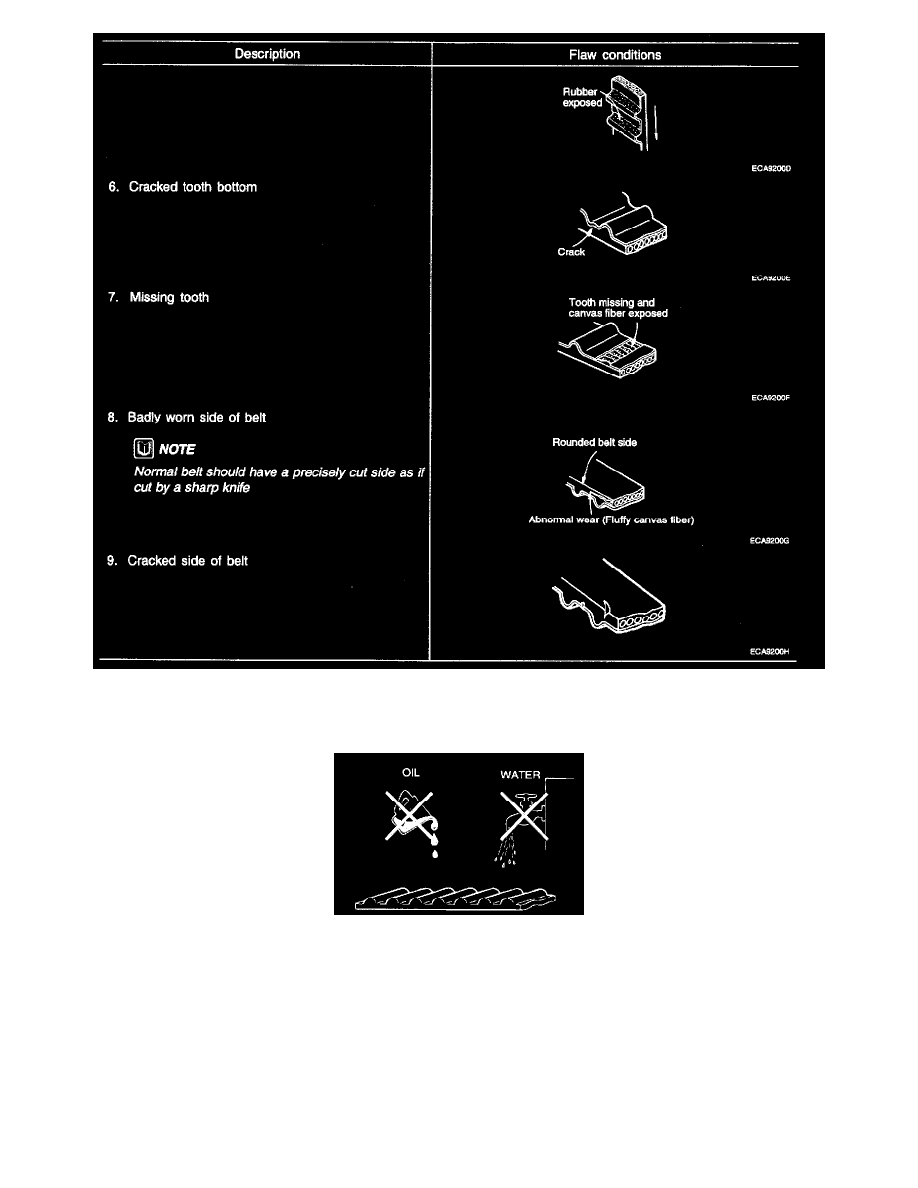

2. When the engine is overhauled or belt tension adjusted, check the belt carefully. If any flaws are evident, replace the belt.

NOTE:
-

Do not bend, twist or turn the timing belt inside out.

-

Do not allow the timing belt to come into contact with oil, water and steam.

REASSEMBLY
