Elantra Sedan L4-1.8L (1997)
Drive Belt: Service and Repair
DRIVE BELT AND PULLEY REMOVAL
1. Loosen the coolant pump pulley bolts.

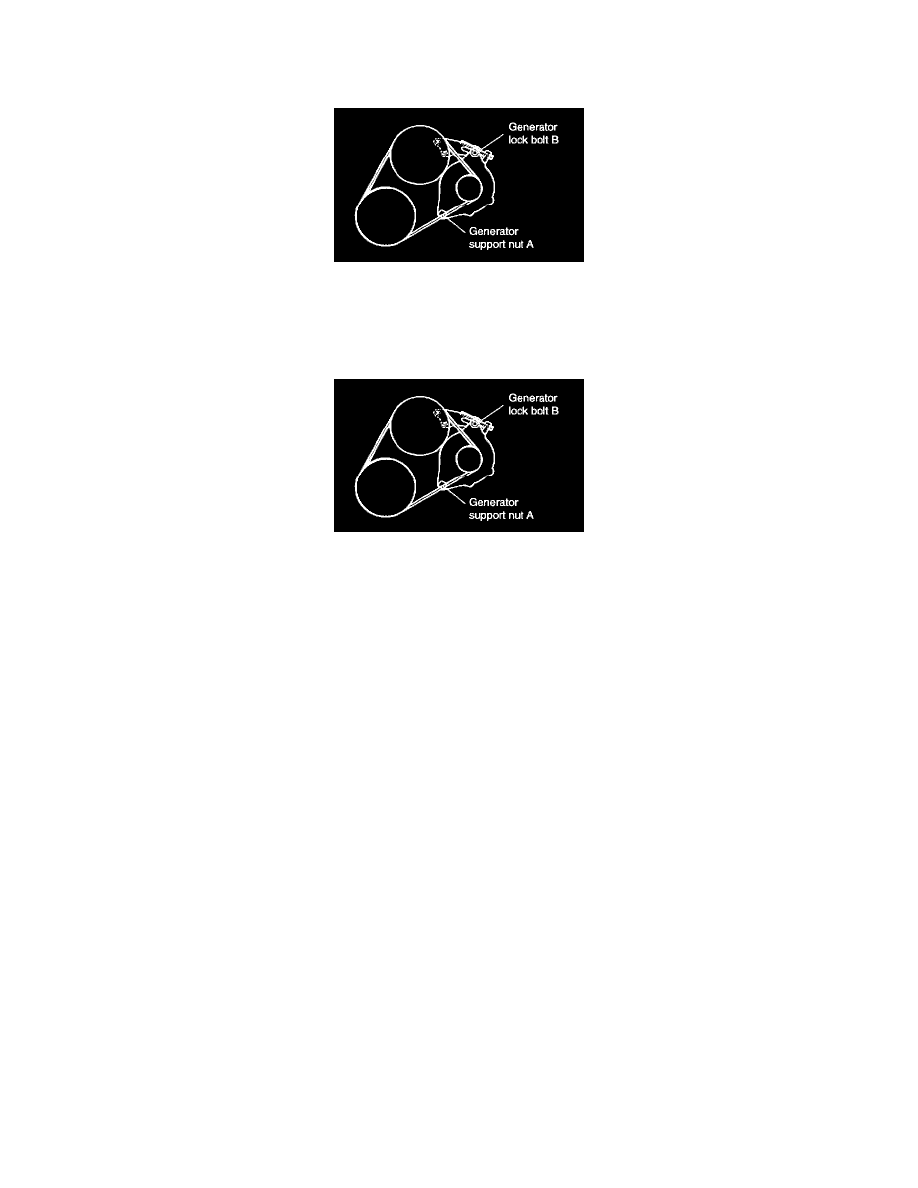

2. Loosen the generator support nut.
3. Loosen the generator lock bolt, and remove the belt.
4. Remove the coolant pump pulley bolts .
INSTALLATION
1. Install the coolant pump pulley to the coolant pump pulley bracket and tighten the bolts firmly.
Tightening torque:
Generator support nut A: 20-25 Nm (200-250 kg.cm, 14-18 ft. lbs.)
Generator lock bolt B: 15-22 Nm (150-220 kg.cm, 11-16 ft. lbs.)
Generator brace mounting bolt: 20-28 Nm (200-280 kg.cm, 14-20 ft. lbs.)
2. After installing the belt, adjust the belt tension.
