Santa Fe V6-2.7L (2003)
Drive Belt: Adjustments
ADJUSTING DRIVE BELT AND TENSIONER
1. Hang the belt on the pulley of the tensioner and install the tensioner. (If the tensioner is already installed, loosen its mounting bolts to allow belt
installation.)
Tightening torque
Tensioner assembly bolt ................................................................................................................................................. 20 - 27 Nm (14 - 20 ft. lbs.)

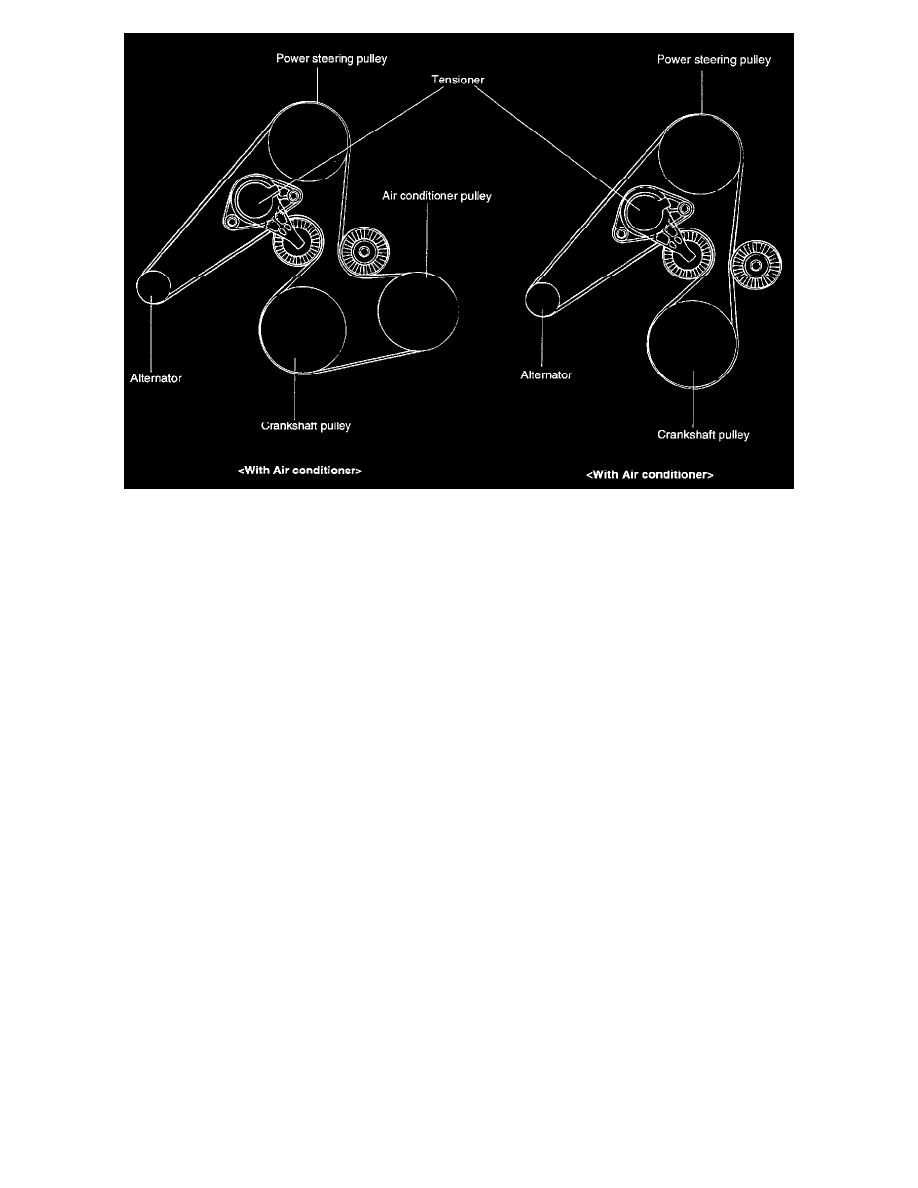

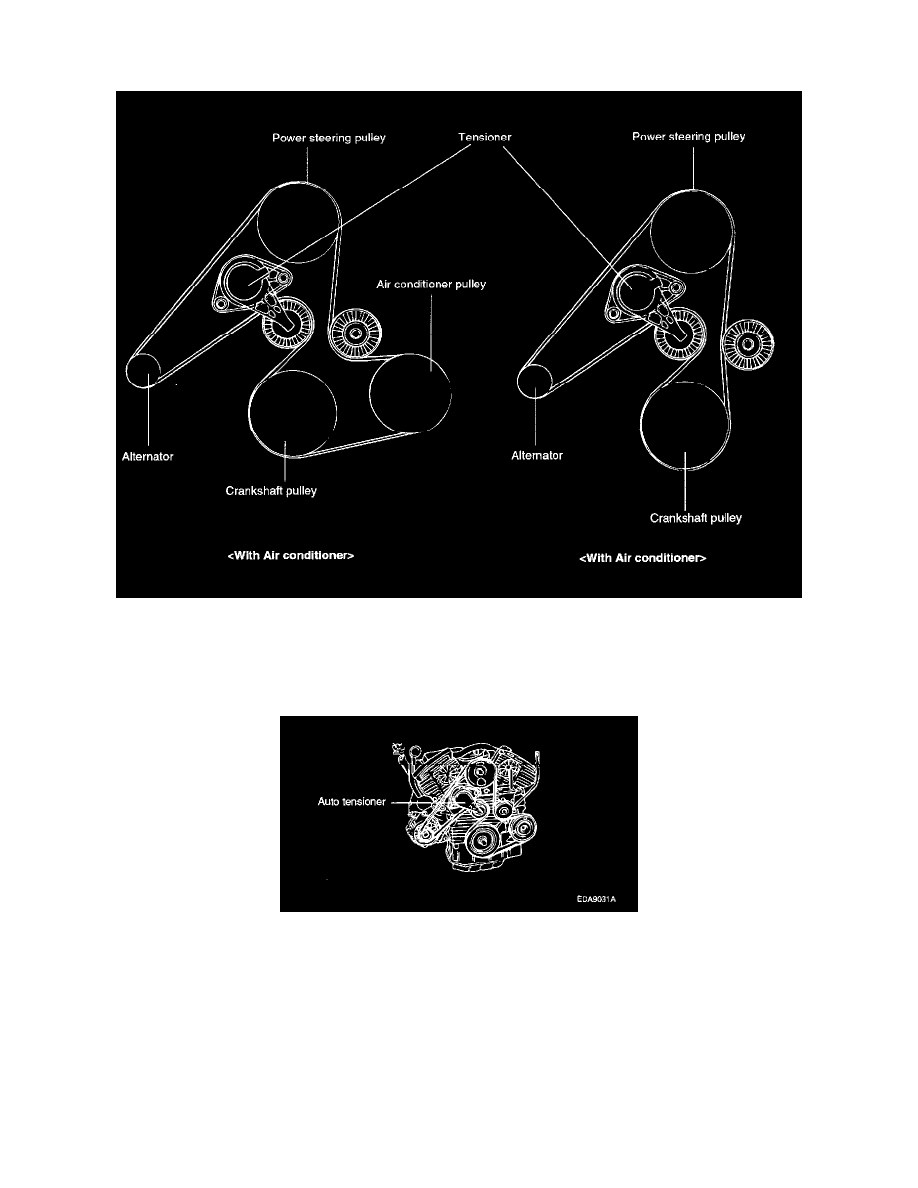

2. Install the belt in the glowing order. [Alternator Power steering Crankshaft pulley Air conditioner pulley.]
