Santa Fe V6-3.5L (2004)
Drive Belt: Adjustments

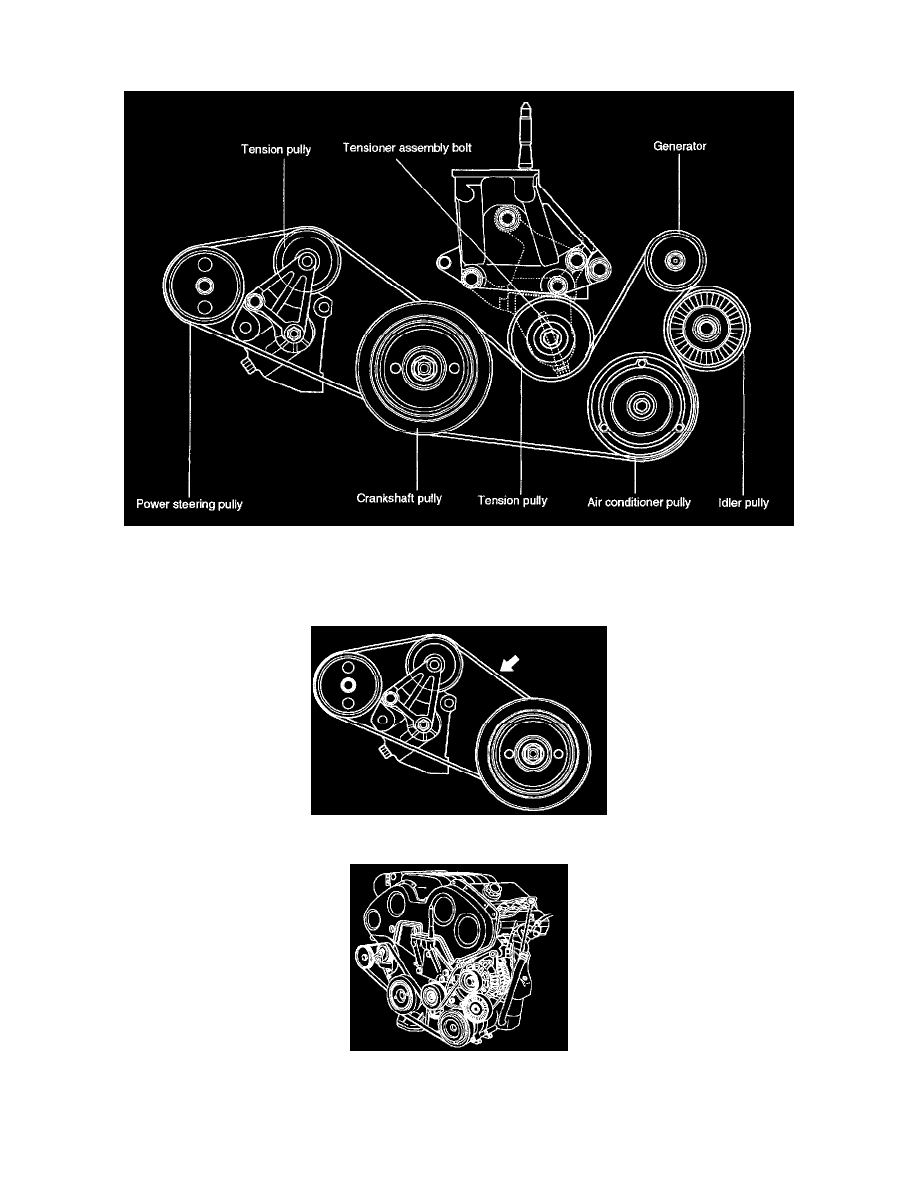

ADJUSTING DRIVE BELT AND TENSIONER
1. Hang the belt on the pulley of the tensioner and install the tensioner. (If the tensioner is already installed, loosen its mounting bolt to allow belt
installation.)
Tightening torque
Tensioner assembly bolt: 45 - 50 Nm (450 - 550 kgf-cm, 33 - 36 ft. lbs.)
2. Install power steering belt.
3. Install drive belt.
