Sonata L4-2.0L (1992)
Grille: Technical Service Bulletins
Radiator Grille - Removal Procedure
Group: TRIM
Number: 92-80-002
Date: May, 1992
Model: 1992 SONATA
Subject:
1992 SONATA RADIATOR GRILLE REMOVAL
PROCEDURE
To remove the 1992 Sonata radiator grille, follow the procedures.
REMOVAL

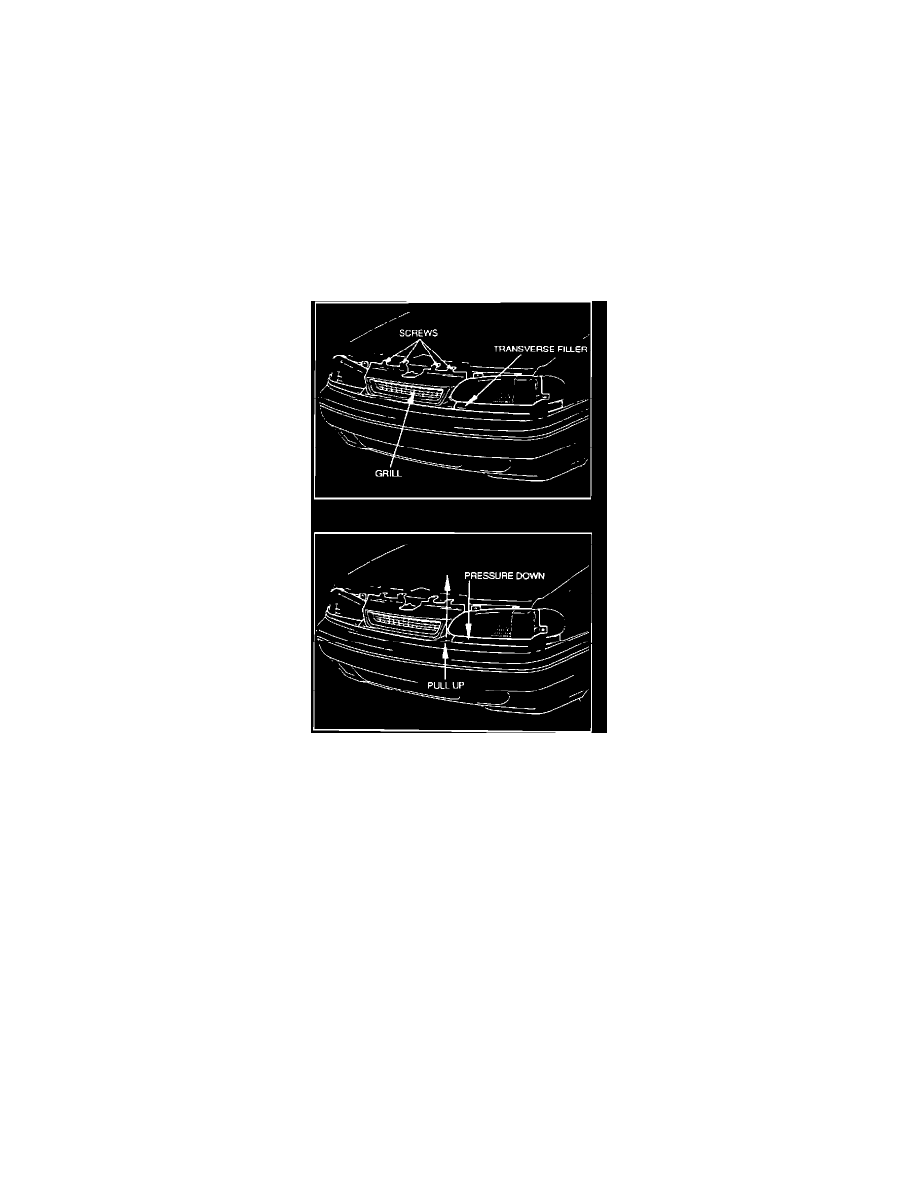

1.
Remove the 4 screws.
2.
Push the end of the transverse filler down while pulling up on the grille end until the grille snaps off of the clip (perform this on each side until the
grille is loose on the dips).
3.
Pull top of the grille out slightly while pulling up gently to fully release the grille from the lower clips.
INSTALLATION
1.
If one or both clips broke during removal, remove the clip by rotating it 90~. Install a new clip in the reverse order of removal.
2.
Slip the grille clip groove over clip endPush down gently to start the grille onto the clip. Push down on the bottom end of the grille, below
headlamp with thumb to snap clip in place.
3.
Install the 4 screws along top.
