Sonata V6-2.7L (2004)
Cruise Control Servo Cable: Adjustments

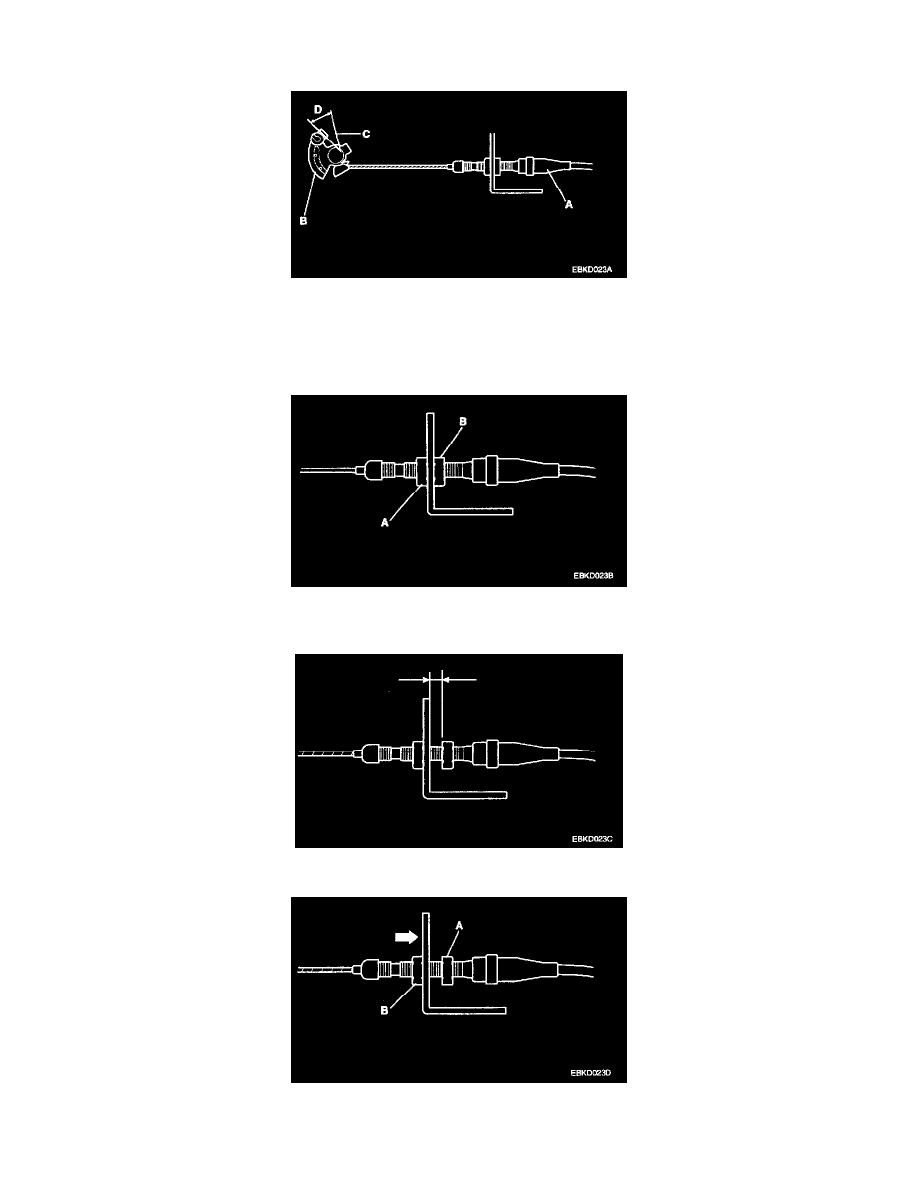

ACTUATOR CABLE ADJUSTMENT
1. Check that the actuator cable (A) moves smoothly with no binding or sticking.
2. Start the engine. Hold the engine at 3,000 rpm with no load (A/T in N or P position, M/T in neutral) until the radiator fan comes on, then let it
idle.
3. Measure the amount of movement of the output linkage (B) until the engine speed starts to increase. At first, the output linkage should be located
at the fully closed position(C). The free play (D) should be 3.75 - 0.5 mm (0.15 - 0.02 in.)
4. If the free play is not within specs, move the cable to the point where the engine speed starts to increase, and tighten the locknut (A) and adjusting
nut (B).
5. Turn the adjusting nut (A) until it is 3.75 ± 0.5 mm (0.15 ± 0.02 in.) away from the bracket (B).
6. Pull the cable so that the adjusting nut (A) touches the bracket. and tighten the locknut (B).
