Fender: Service and Repair

Make

Hyundai

Model

Sonata GLS

Engine

V6-2.5L

Year

2000

Section

Fender › Service and Repair

Body and FrameService and Repair

Fender: Service and Repair

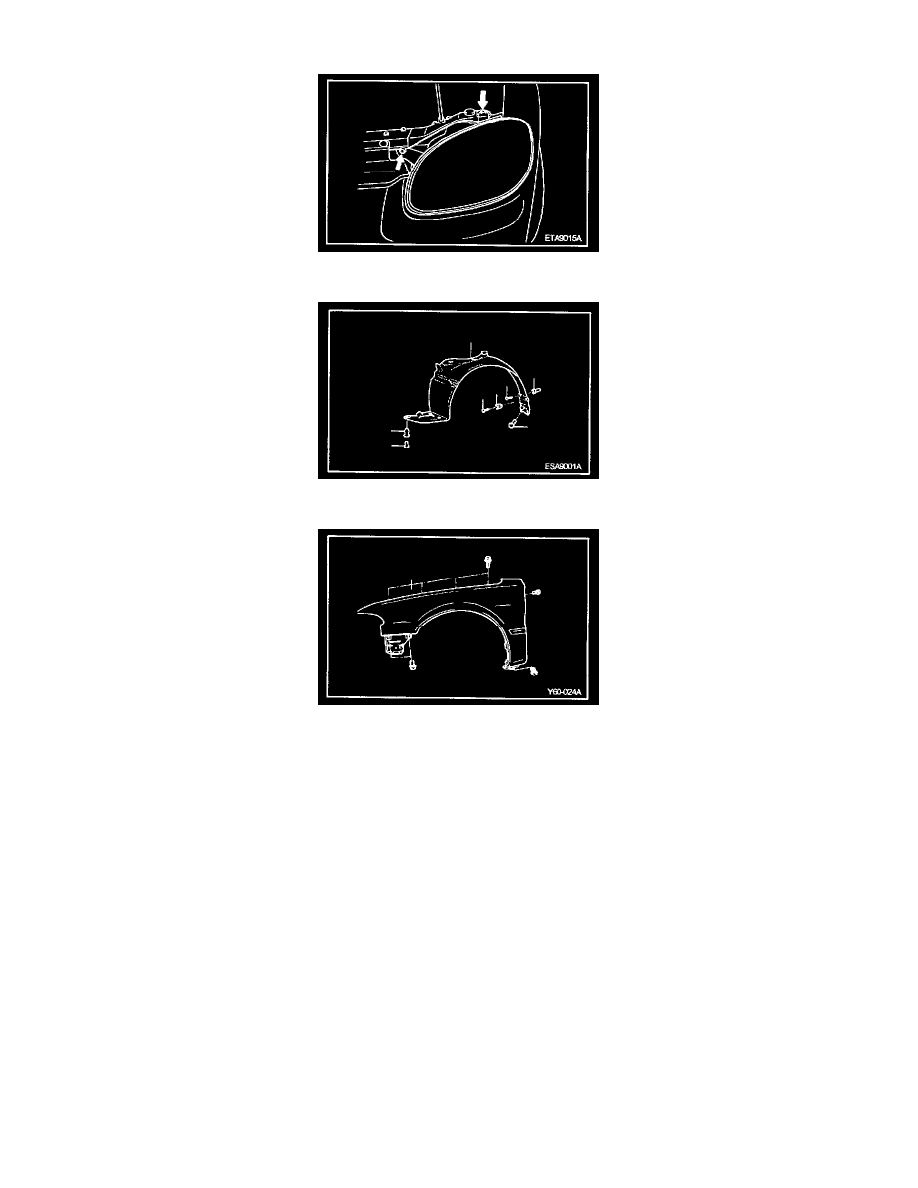

1. Remove the head lamp.

2. Remove the front wheel guard.

3. Remove the fender mounting bolts.

CAUTION:  Use care to avoid damaging the paint

4. Installation is the reverse of removal.

NOTE:  In order to prevent the fender mounting bolts area from forming rust, apply tape sealer between the fender and the body panel.
