Tiburon V6-2.7L (2004)

Page 1
background image

Suspension Strut / Shock Absorber: Service and Repair
Rear

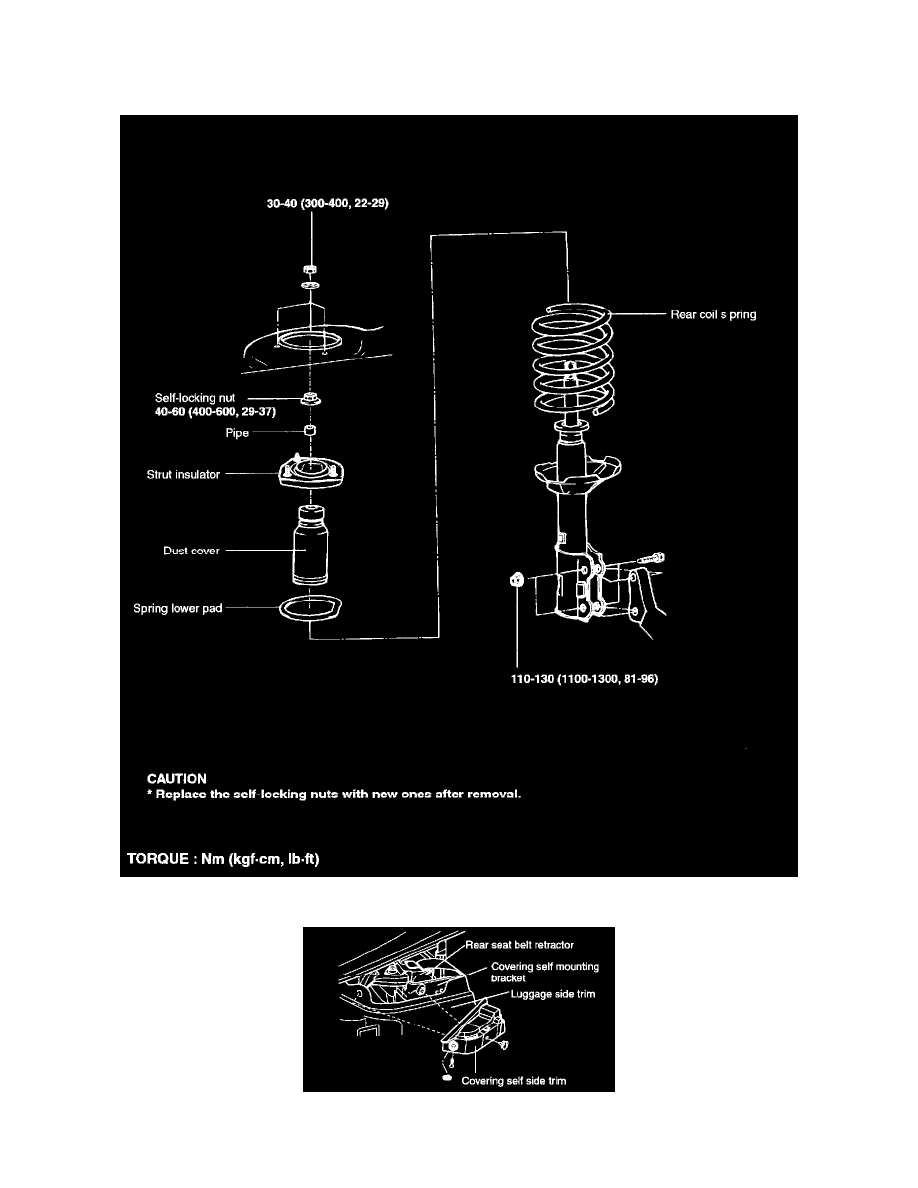

REAR STRUT

REAR STRUT

REMOVAL

1. Remove the covering self side trim, rear seat belt retractor, luggage side trim and covering self mounting bracket.
