Tiburon V6-2.7L (2004)
2. Installation:
^ (1) Do not exceed the allowed torque and DO NOT use electric or pneumatic tools. Tightening torque = 3.0 lb. ft. (4 Nm, 0.4 Kg. m)
NOTE:
Always use a new TPMS valve nut.
^ (2) Attach the sensor to the rim firmly.
^ (3) Hold the sensor and assemble the valve stem to the sensor by hand.
^ (4) Secure the TPMS sensor by rotating the valve stem clockwise with a torque wrench.
^ (5) After installing the TPMS sensor, check to ensure it is attached to the rim firmly.

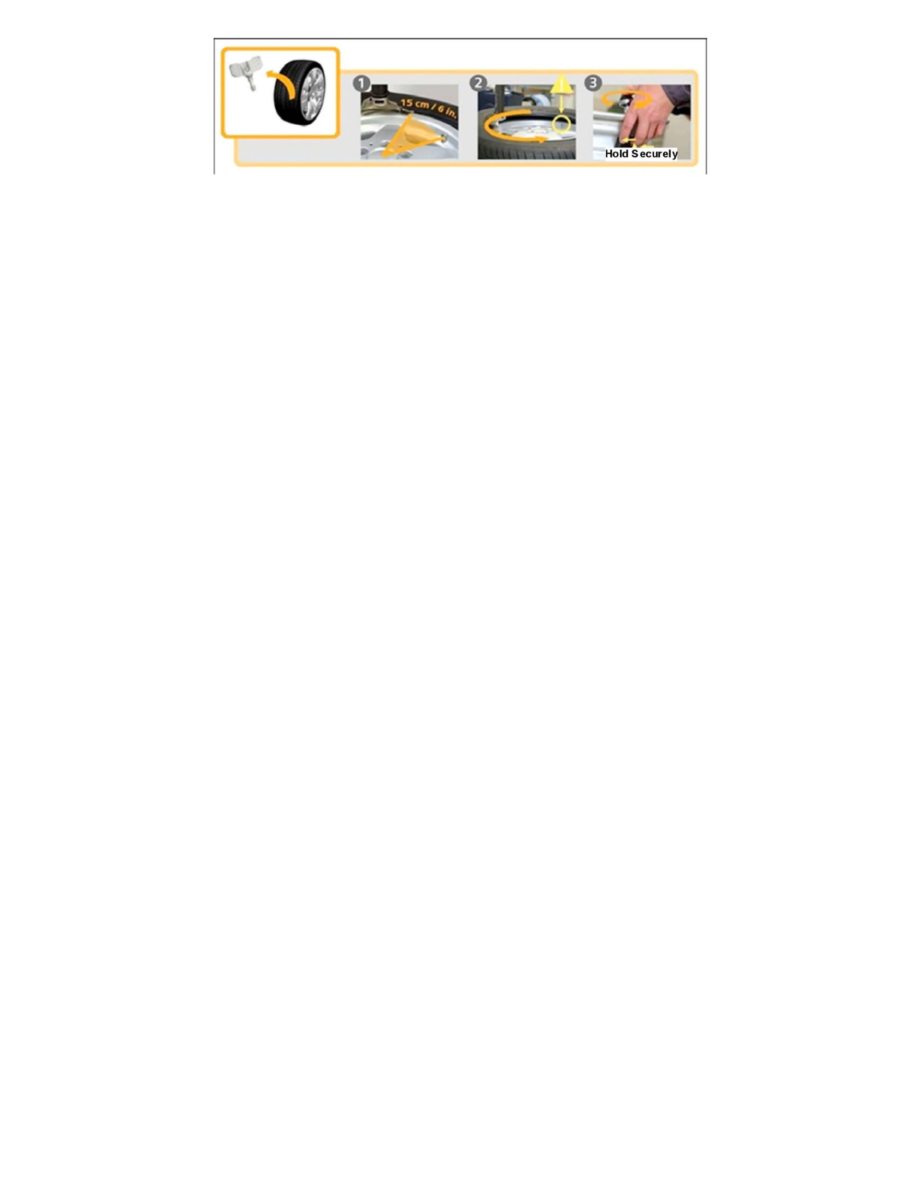

^ (6) Start seating the tire bead about 15cm (6 inches) from the TPMS valve stem.
^ (7) Make sure that the tool does not touch the TPMS sensor while seating the tire bead.
