Page 8
background image

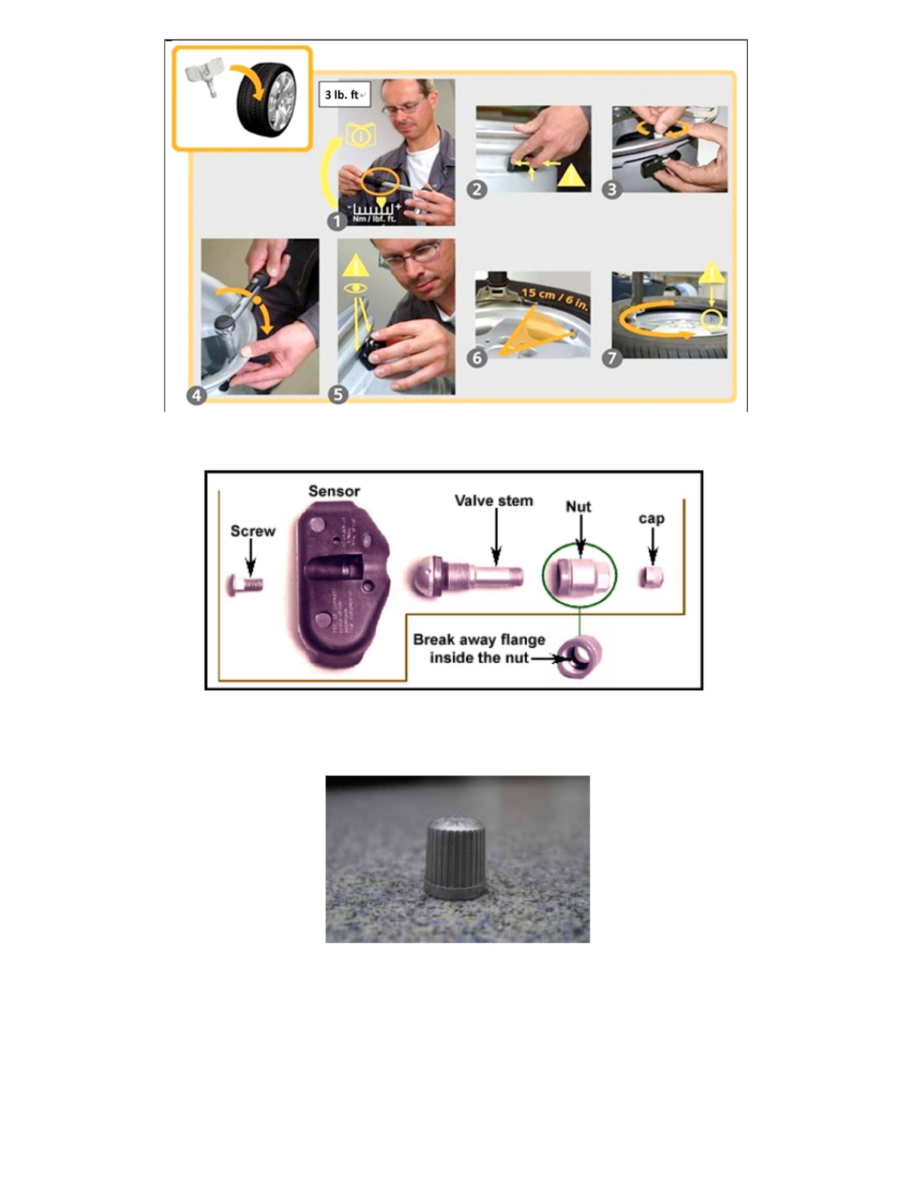

D. Valve Stem Cap Corrosion

d. TPMS Valve Stem Cap Corrosion:

Some vehicles are equipped with aluminum valve stem caps. If aluminum valve stem caps corrode, they may become difficult to remove and may lead to
unnecessary replacement of the TPMS wheel sensor assembly.

Instead of replacing the assembly, it is recommended to replace only the aluminum tire valve stem cap with a grey-colored plastic part. Part number:
52933-1F400.

E. Electro-Magnetic Interference

e. Electromagnetic Interference

Symptom/Condition:
