Front Door Window Regulator: Service and Repair

FRONT DOOR

REMOVAL AND INSTALLATION

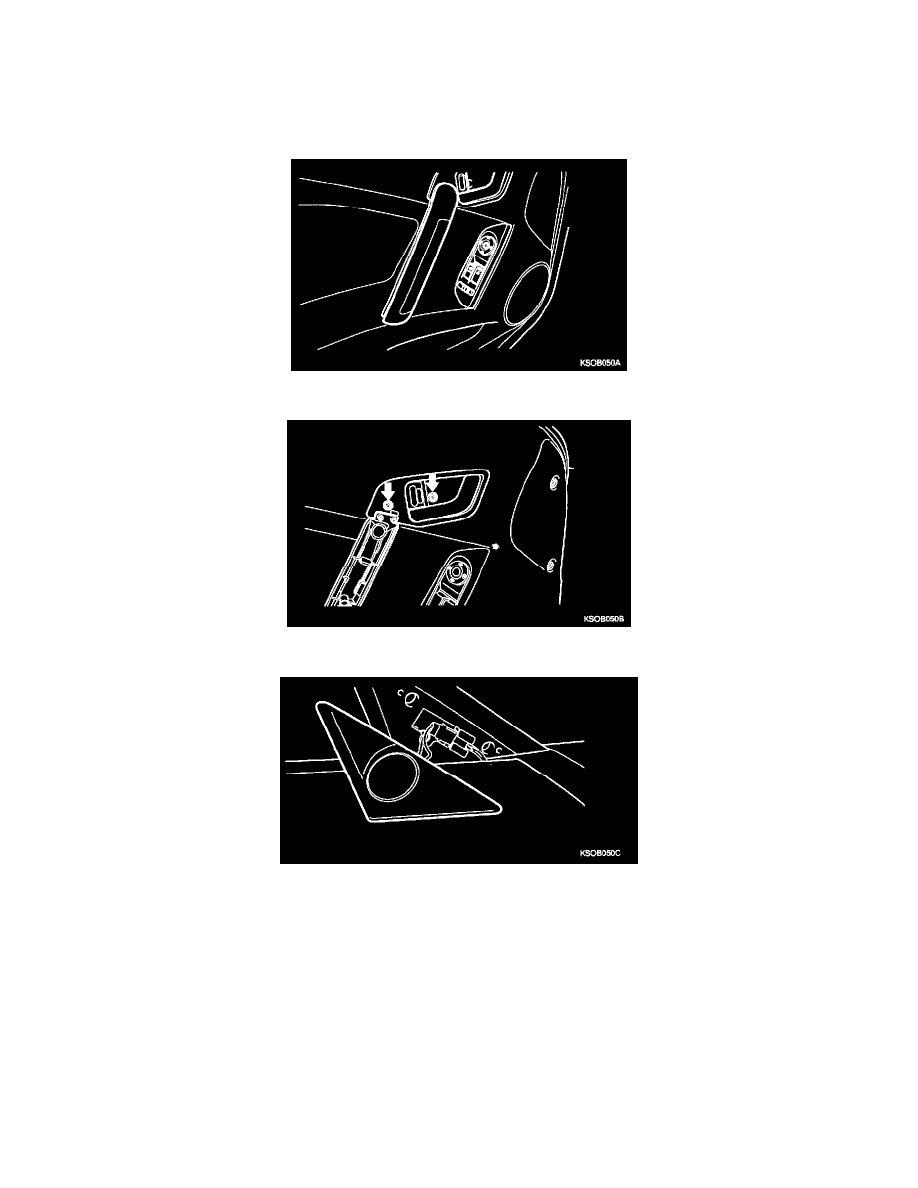

1. Remove the grip handle using a remover.

2. Remove the inside handle housing.

3. Remove the tweeter speaker using a remover.

4. Remove the mounting screws and remove the door trim panel.

Disconnect the wire connectors.
