Tucson V6-2.7L (2005)
Standard value
Free height: 43.8 mm (91.724 inch)
Load: 4.6 kg/39.1 mm (110 lbs./1.547 inch)

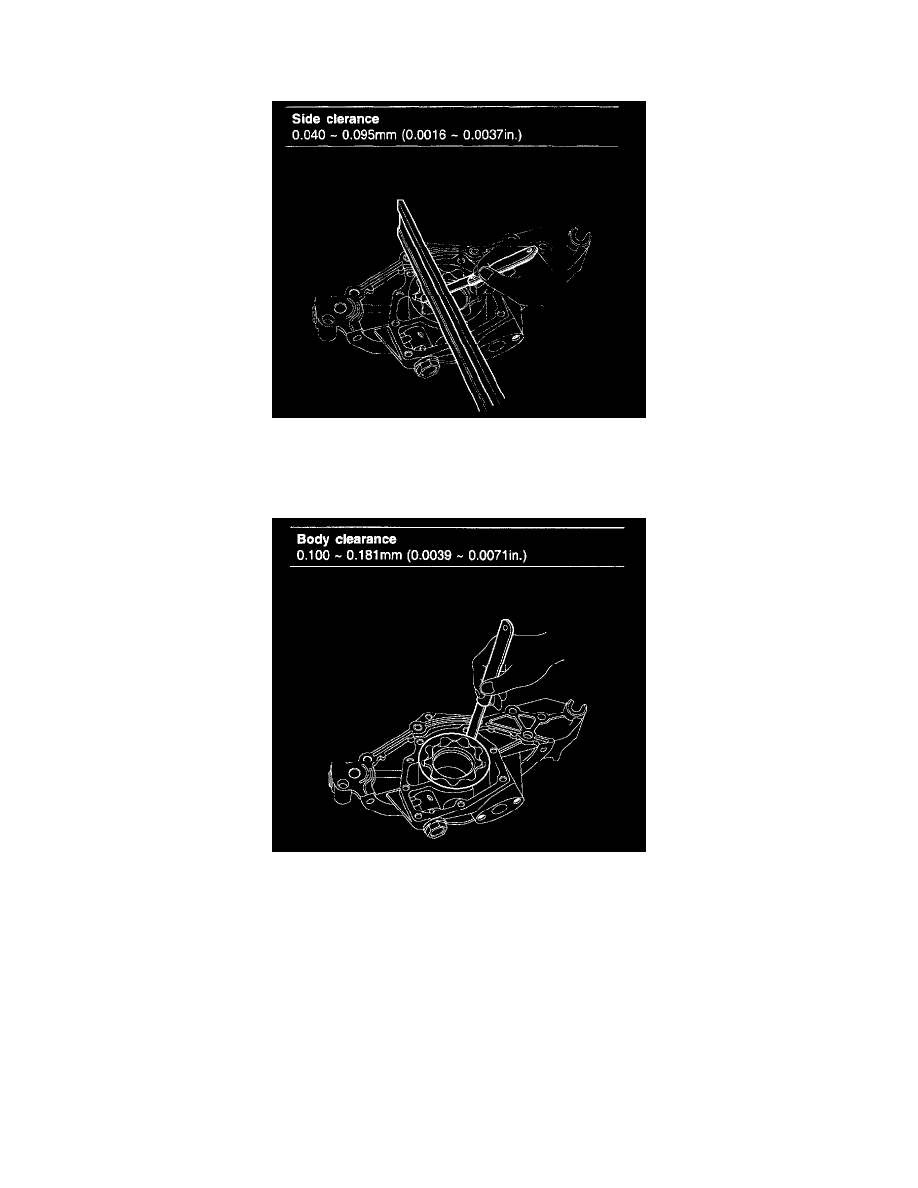

3. Inspect rotor side clearance.
Using a feeler gauge and precision straight edge, measure the clearance between the rotors and precision straight edge.
Side clearance 0.040 - 0.095 mm (0.0016 - 0.0037 inch)
If the side clearance is greater than maximum, replace the rotors as a set. If necessary, replace the front case.
4. Inspect rotor body clearance. Using a feeler gauge, measure the clearance between the outer rotor and body.
Body clearance 0.100 - 0.181 mm (0.0039 - 0.0071 inch)
If the body clearance is greater than maximum, replace the rotors as a set. If necessary, replace the front case.
REASSEMBLY
