Engine Oil: Specifications (page 8 of 9) – Hyundai Tucson V6-2.7L (2005)

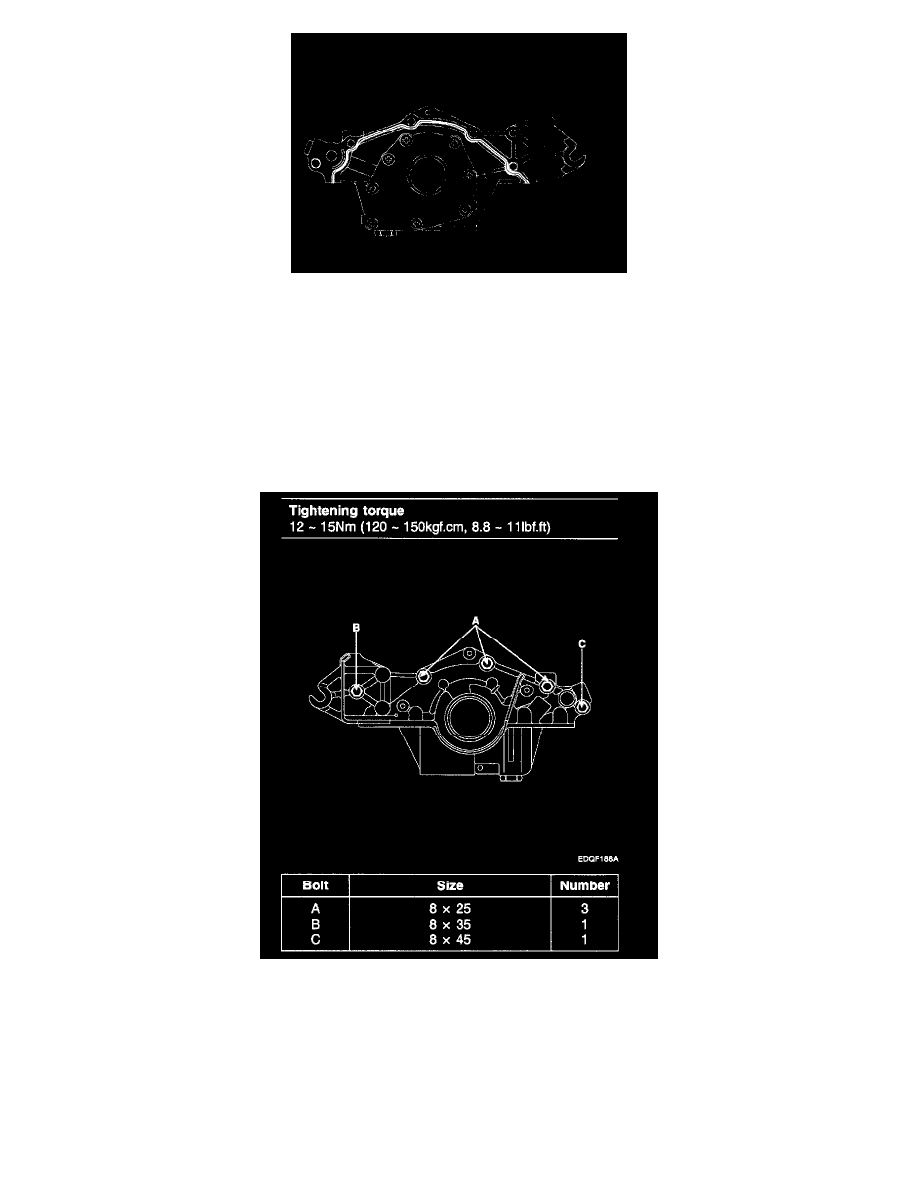

2) Apply liquid gasket to the oil pump as shown in the illustration.

Use liquid gasket MS 721-40A.

NOTE:
^

To prevent leakage of oil, apply liquid gasket to the inner threads of the bolt holes.

^

Do not install the parts if five minutes or more have elapsed since applying the liquid gasket. Instead, reapply liquid gasket after removing
the residue.

^

After assembly, wait at least 30 minutes before filling the engine with oil.

3) Place a new O-ring on the cylinder block.
4) Engage the spline teeth of the oil pump drive gear with large teeth of the crankshaft, and slide the oil pump on the crankshaft.

5) Install the oil pump with 5 bolts.

Uniformly tighten the bolts in several passes.
Tightening torque 12 - 15 Nm (120 - 150 kgf-cm, 8.8 - 11 ft. lbs.)

4. Apply a light coat of oil to the seal lip.
