Body and FrameService and Repair · page 1 of 2
Fender: Service and Repair
FENDER
REMOVAL AND INSTALLATION

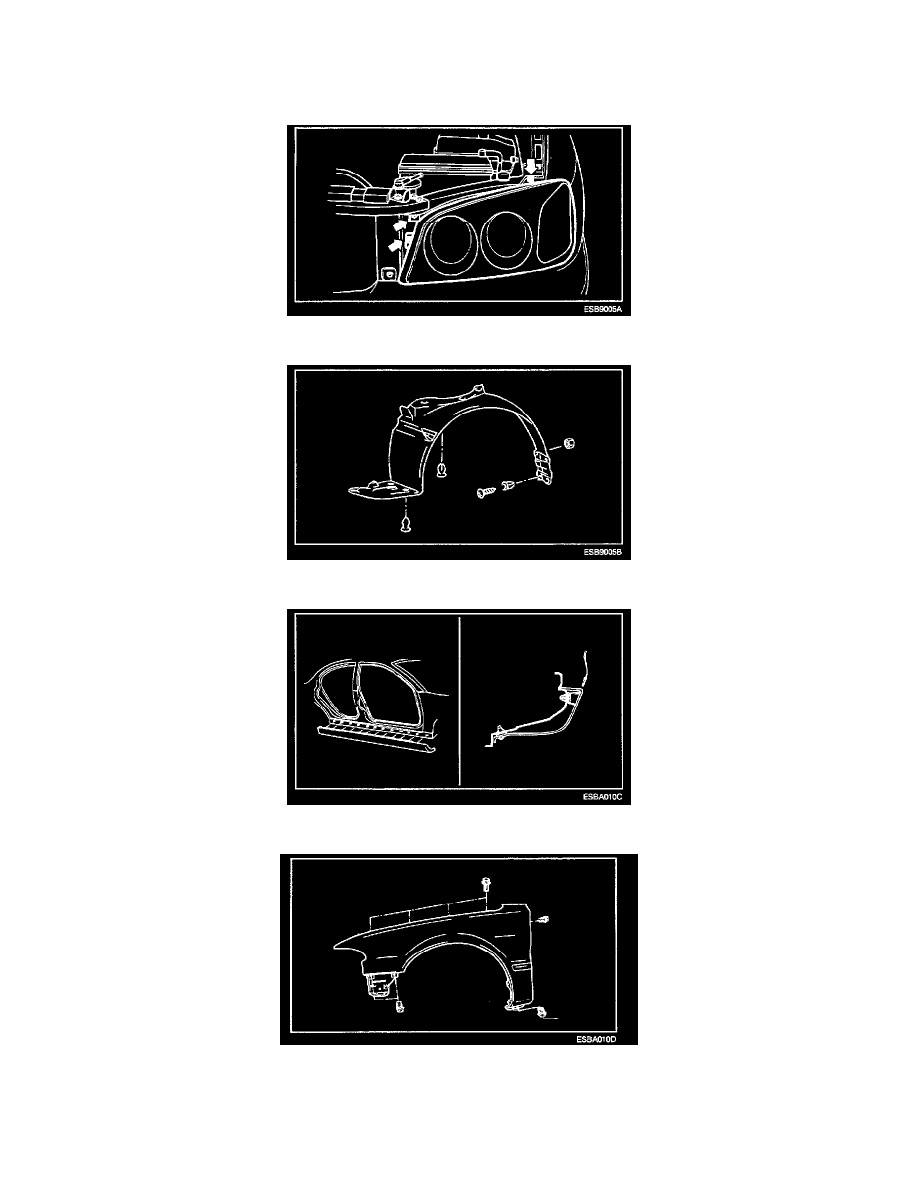

1. Remove the head lamp assembly.
2. Remove the front wheel guard.
3. Remove the side sill molding.
4. Remove the fender mounting bolts.
CAUTION: Use care to avoid damaging the paint.
5. Installation is the reverse of removal.
