XG 350 V6-3.5L (2002)
Drive Belt: Adjustments
Tension Adjustment

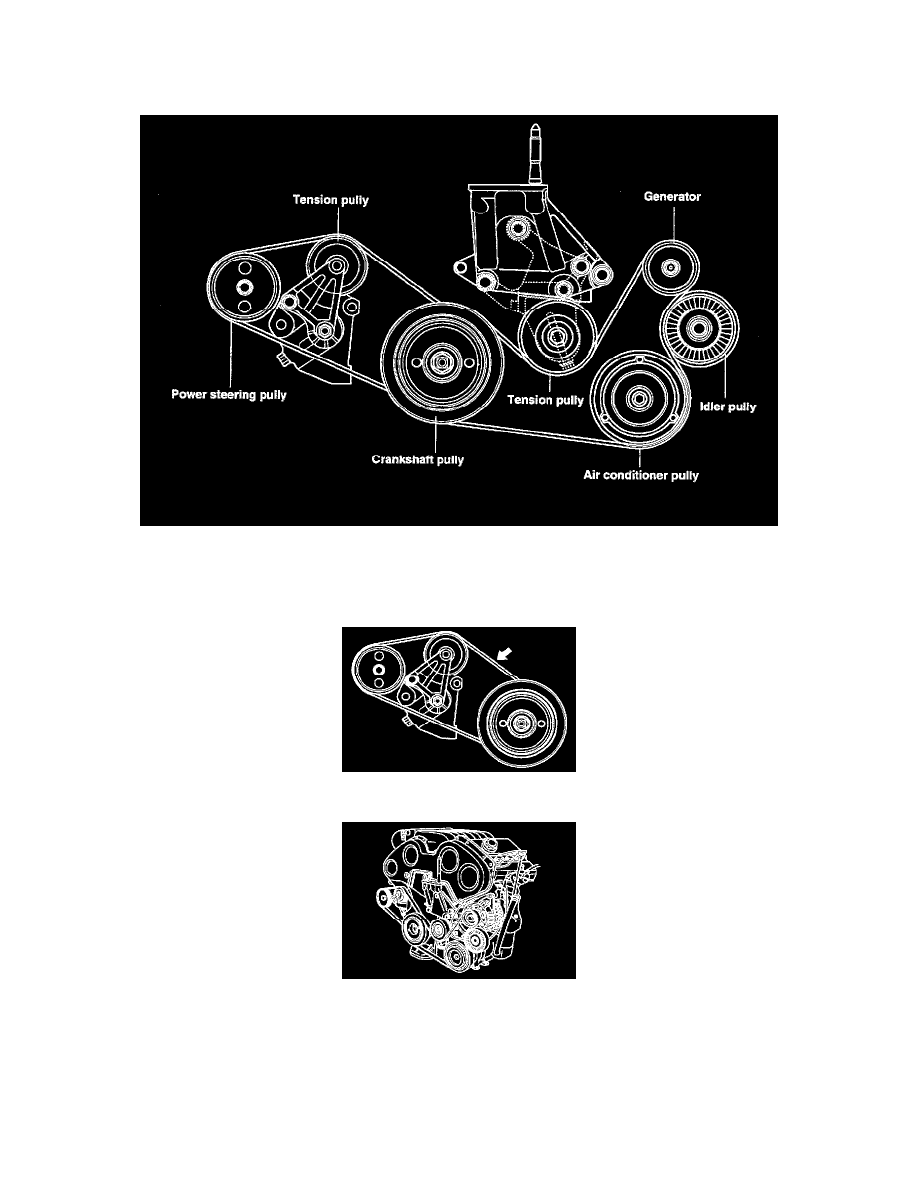

ADJUSTING DRIVE BELT AND TENSIONER
1. Hang the belt on the pulley of the tensioner and install the tensioner.
(If the tensioner is already installed, loosen its mounting bolts to allow belt installation.)
Tightening torque
Tensioner assembly bolt 45 - 50 Nm (450 - 500 kg.cm, 33 - 36 ft. lbs.)
2. Install power steering belt.
3. Install drive belt.
