XG 350 V6-3.5L (2002)
a bead of adhesive around the edge of the glass.
NOTE: Apply the adhesive within 5 minutes after applying the primer:

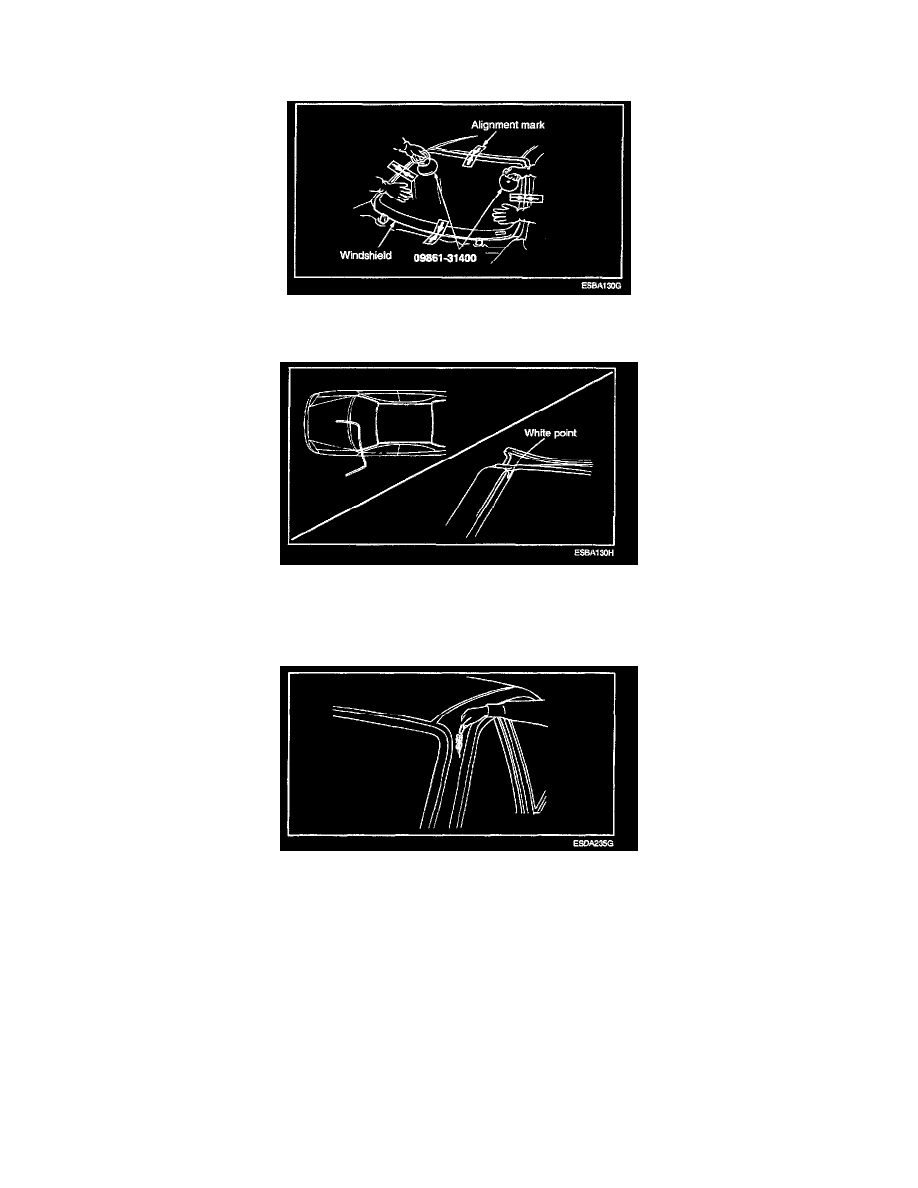

10. Using the suction cups or the special tool (09861 - 31400), lower the glass over the opening align it with the marks made in step 5 and set it down
on the sealant, insert two lower spacers to prevent the windshield from moving downward.
11. Align marks of the windshield glass molding (white point in the glass molding) and inside roof molding.
12. Press the glass molding from center of the car to the left pillar and right pillar simultaneously.
13. After one hour, perform a water-leak test for the windshield. Use a cold water spray, being careful not to direct a powerful stream of water on the
new adhesive material. Allow water to spill over the edges of the glass.
14. If there are leaks, dry the affected area, then apply sealant.
NOTE:
-
Let the car stand for at least four hours after windshield installation. If the car has to be used within the first 8 hours, it must be driven slowly
-
Keep the windshield dry for the first hour after installation.
15. Install the removed parts.
NOTE: Advise the customer not to do the following for two to three days:
-
Slam the doors with all the windows rolled up.
-
Stress the body excessively (such as when going in and out of driveways at an angle or driving over rough, uneven roads).
