Timing Component Alignment Marks: Locations
- Make
- Infiniti
- Model
- FX50 AWD
- Engine
- V8-5.0L (VK50VE)
- Year
- 2009
- Section
- Timing Component Alignment Marks › Locations
MaintenanceLocations · page 1 of 2
/Page-315001.png)

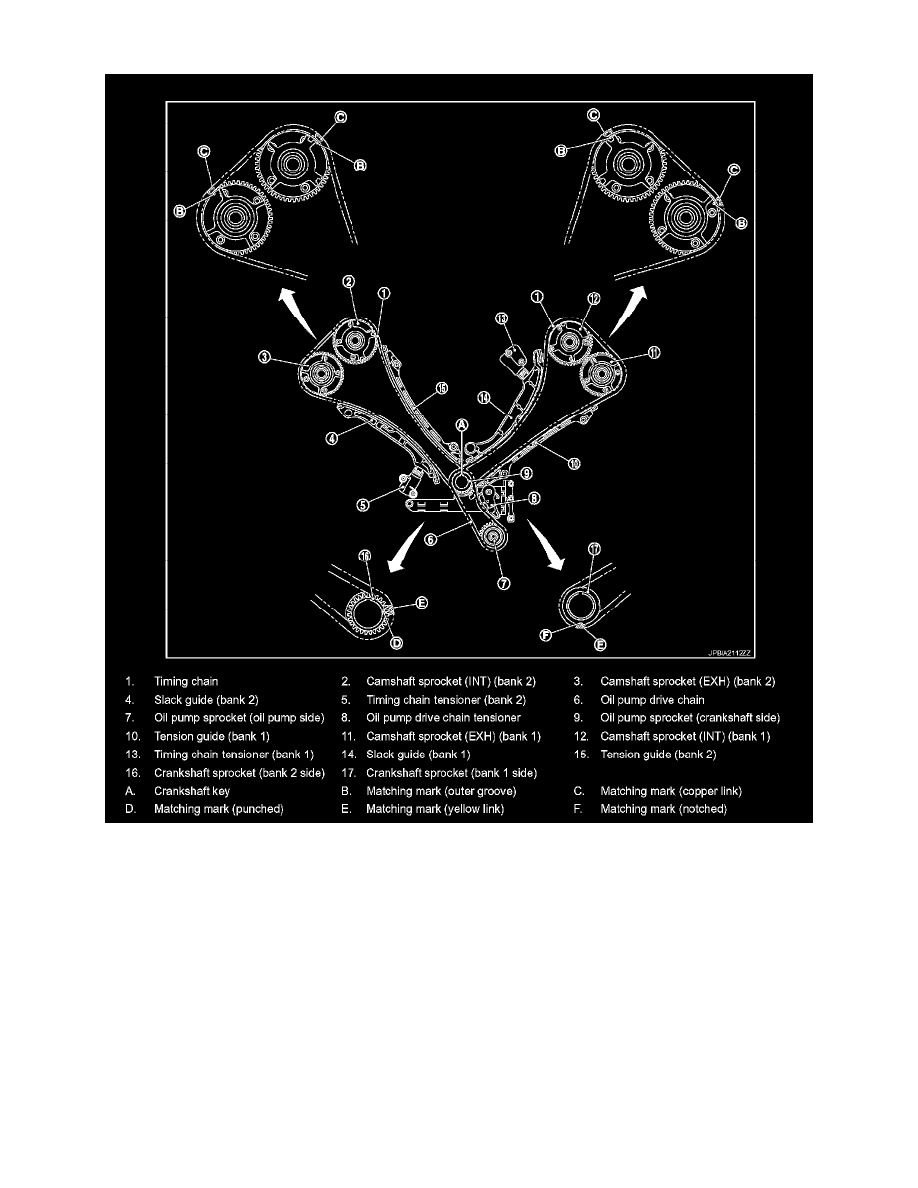

Timing Component Alignment Marks: Locations
Pinch or Ctrl + scroll to zoom. Double-tap to reset.
