G35x Sedan AWD V6-3.5L (VQ35HR) (2007)
/Page-526016.png)

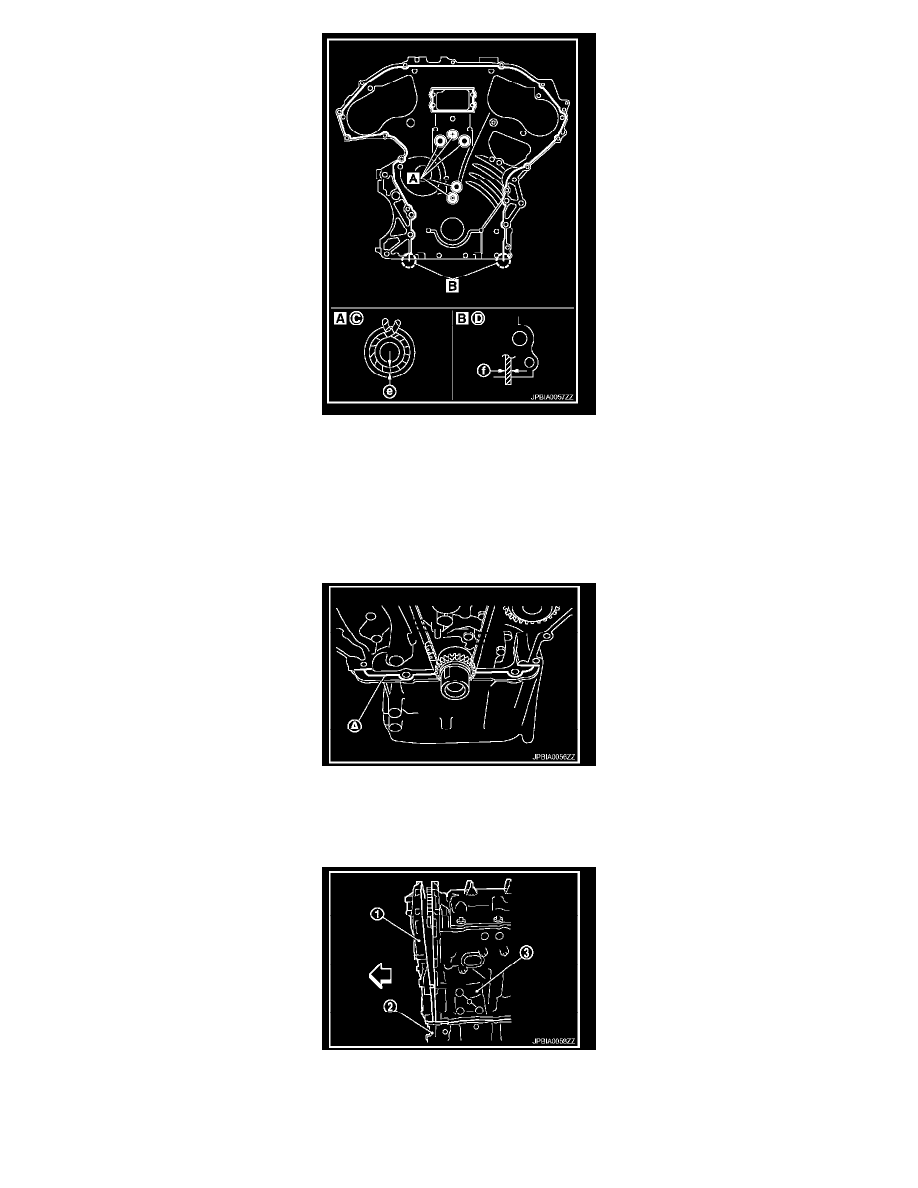

a. Apply a continuous bead of liquid gasket with the tube presser [SST: WS39930000 ( - )] to front timing chain case back side as shown in the
figure.
Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-15, "Recommended Chemical Products and Sealants". See:
Maintenance/Specifications/Fluid Type Specifications
C: Bolt hole
D: Protrusion
e: 2.6 - 3.6 mm (0.102 - 0.142 in) dia.
f: 3.4 - 4.4 mm (0.134 - 0.173 in) dia.
b. Apply liquid gasket to top surface of oil pan (upper) as shown in the figure.
A: 4.0 - 5.0 mm (0.157 - 0.197 in) dia.
Use Genuine RTV silicone Sealant or equivalent. Refer to GI-15, "Recommended Chemical Products and Sealants". See:
Maintenance/Specifications/Fluid Type Specifications
c. Assemble front timing chain case.
1: Front timing chain case
2: Oil pan (upper)
3: Cylinder block
