Q45 V8-4.5L (VK45DE) (2002)

Page 1
background image

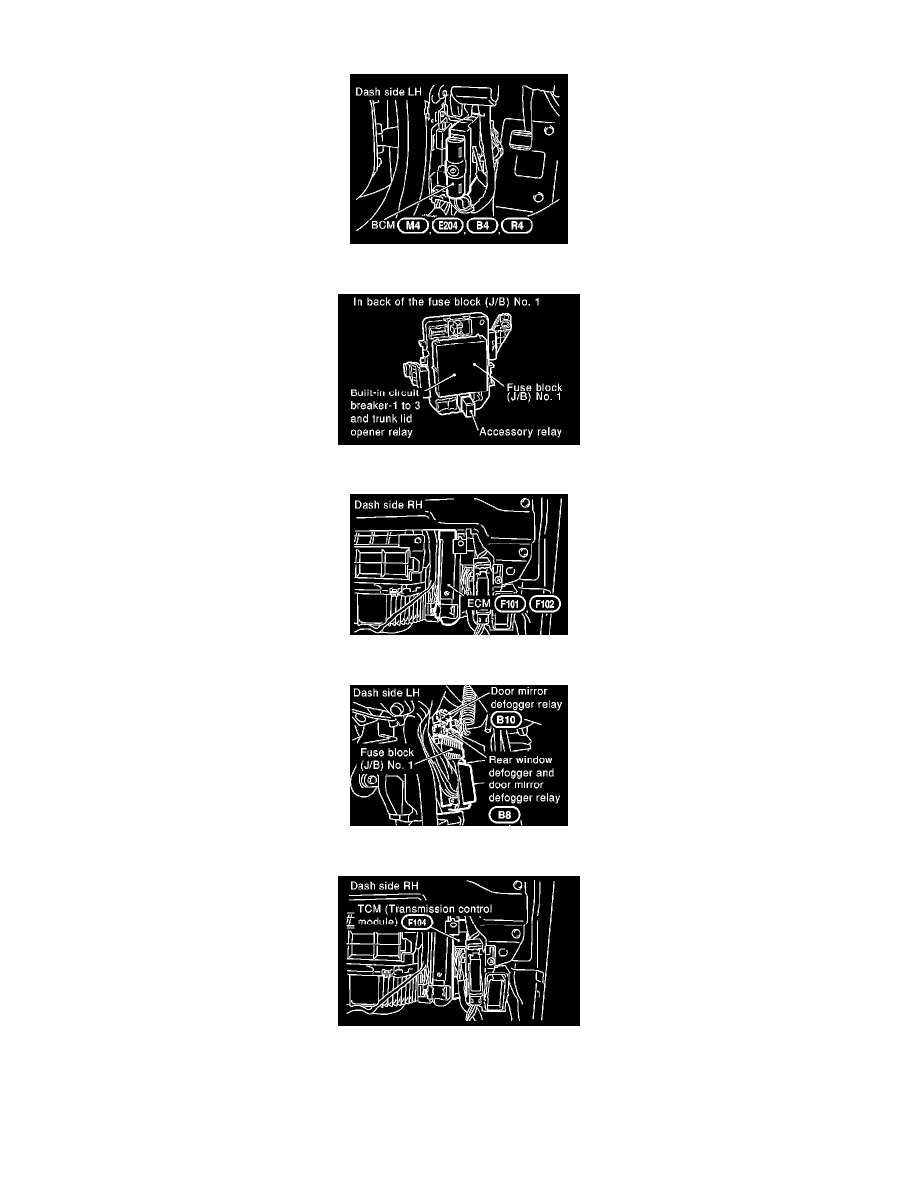

Relay Box: Locations

Dash Side LH

Fuse Block

Dash Side RH

Dash Side LH, Door Mirror Defogger Relay, Fuse Block, Rear Window Defogger And Door Mirror Defogger Relay

Dash Side RH, TCM
