Amigo 2WD L4-2.3L (4ZD1) (1989)
Timing Belt: Testing and Inspection

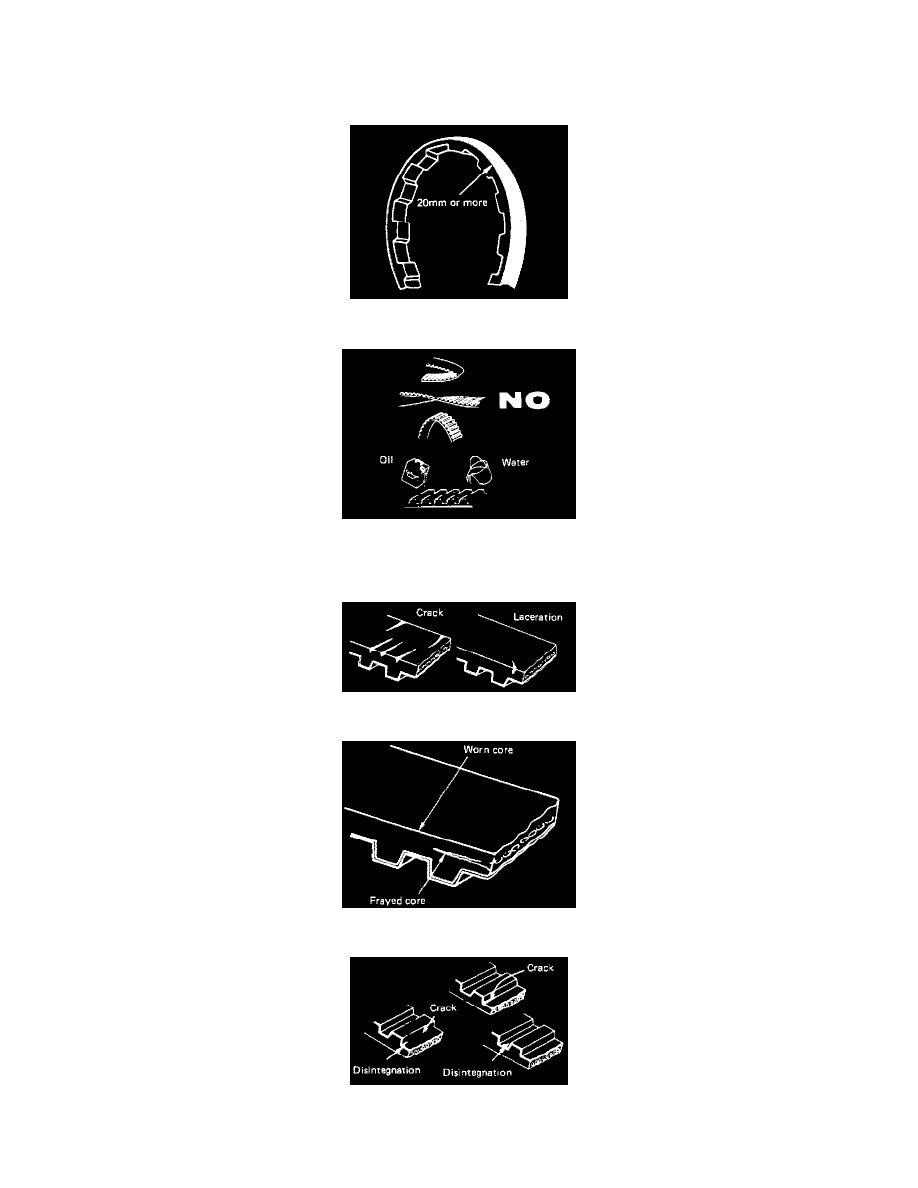

TIMING BELT INSPECTION
Caution in handling
1. Do not bend in less than 20 mm in radius.
2. Avoid twisting or kinking the belt and keep it free from water, oil, dust and other foreign matter.
Visual check
1. The belt must be replaced if cracks or lacerations are found in the side and rear faces.
2. replacement is necessary when abnormal wear is found in the side face.
3. Replacement is necessary when belt fabric is found to be cracked or disintegrated.
