Engine Control Module: Locations
- Make
- Isuzu
- Model
- Amigo 2WD
- Engine
- L4-2.3L (4ZD1)
- Year
- 1989
- Section
- Relays and Modules - Computers and Control Systems › Engine Control Module › Locations
Relays and ModulesLocations · page 1 of 4

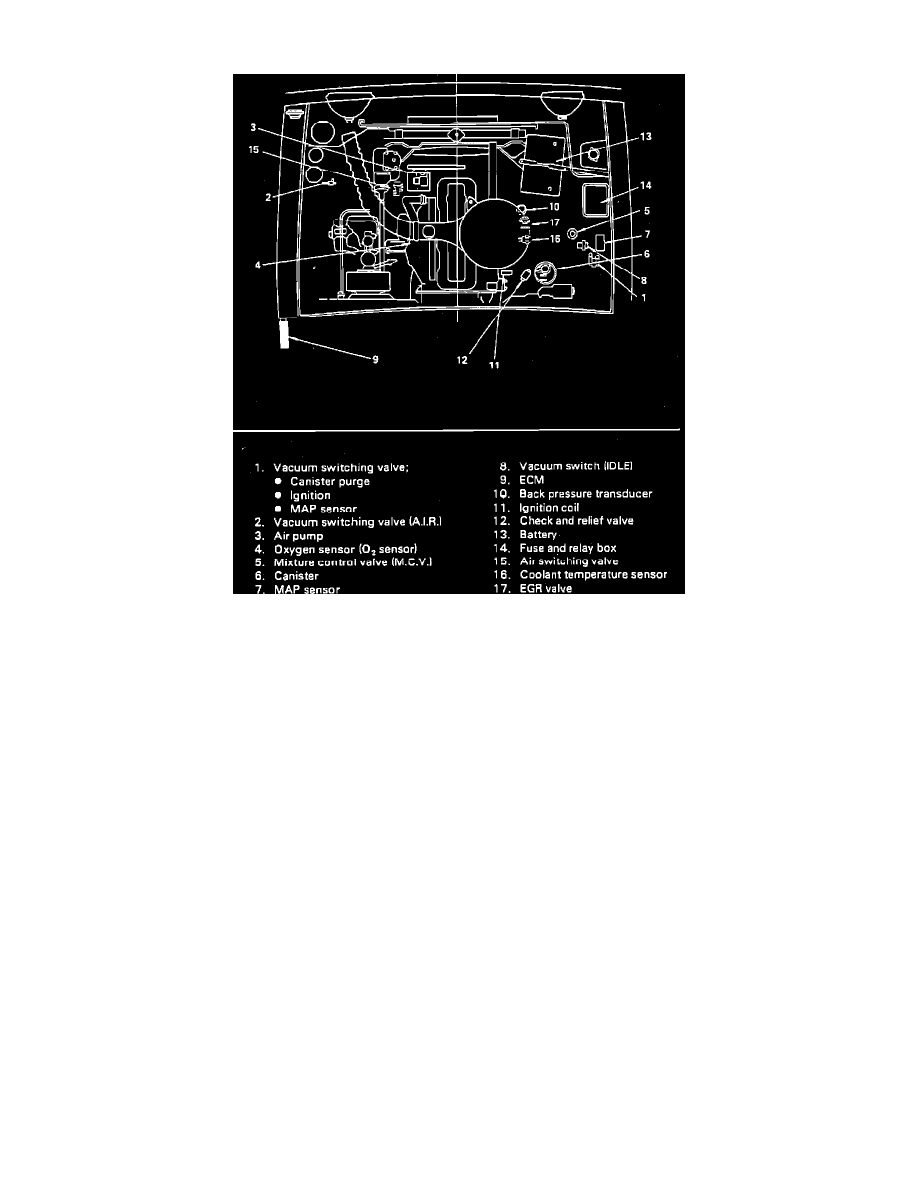

Engine Control Module: Locations – diagram from the Relays and Modules chapter of the Isuzu Amigo 2WD L4-2.3L (4ZD1) (1989) factory manual.
/Page-3001.png)
Engine Control Module: Locations
Engine Compartment Component Locations.
On LH Kick Panel
Applicable to: 1989 Carbureted Models
