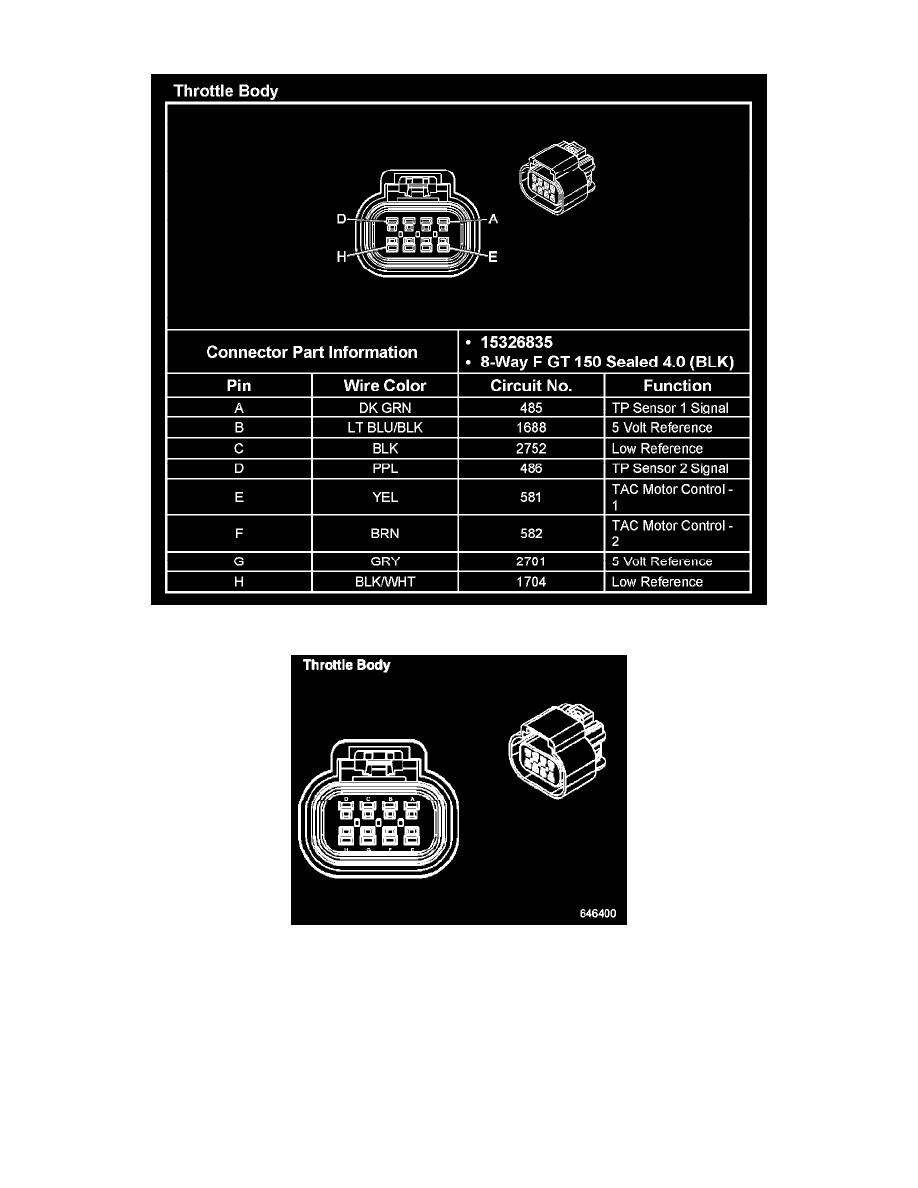

Throttle Body: Diagrams

Throttle Body

Throttle Body

Powertrain Management
Fuel Delivery and Air Induction
Throttle Body
Component Information
Diagrams
