Engine Control Module: Connector Views

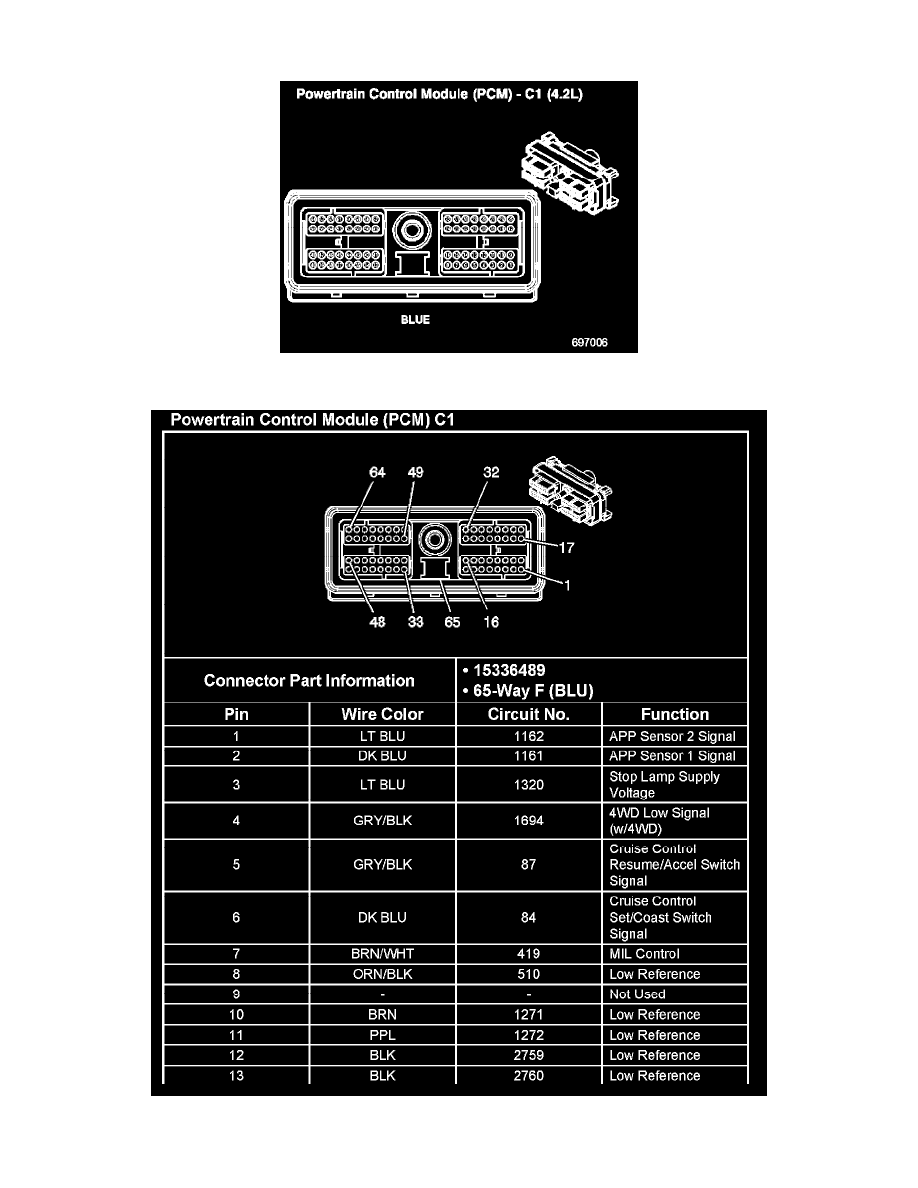

Powertrain Control Module (PCM) - C1

Powertrain Control Module (PCM) C1 Part 1
