Ascender 4WD L6-42L (2003) Engine Control Module Connector Views

Page 1
background image

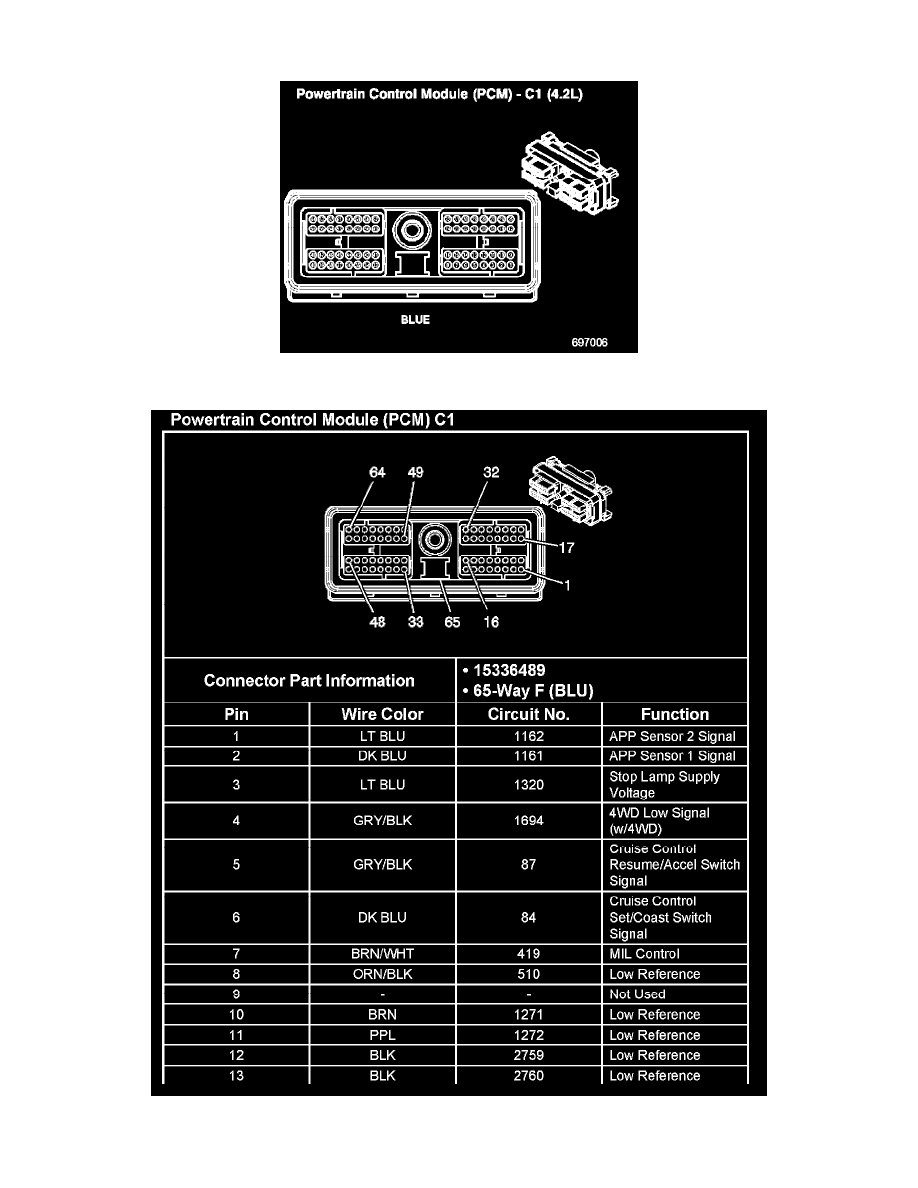

Engine Control Module: Connector Views

Powertrain Control Module (PCM) - C1

Powertrain Control Module (PCM) C1 Part 1
