Ascender 4WD L6-4.2L (2003)
Seals and Gaskets: Service and Repair
Filler Tube and Seal Replacement (LL8)
Filler Tube and Seal Replacement (LL8)
Removal Procedure

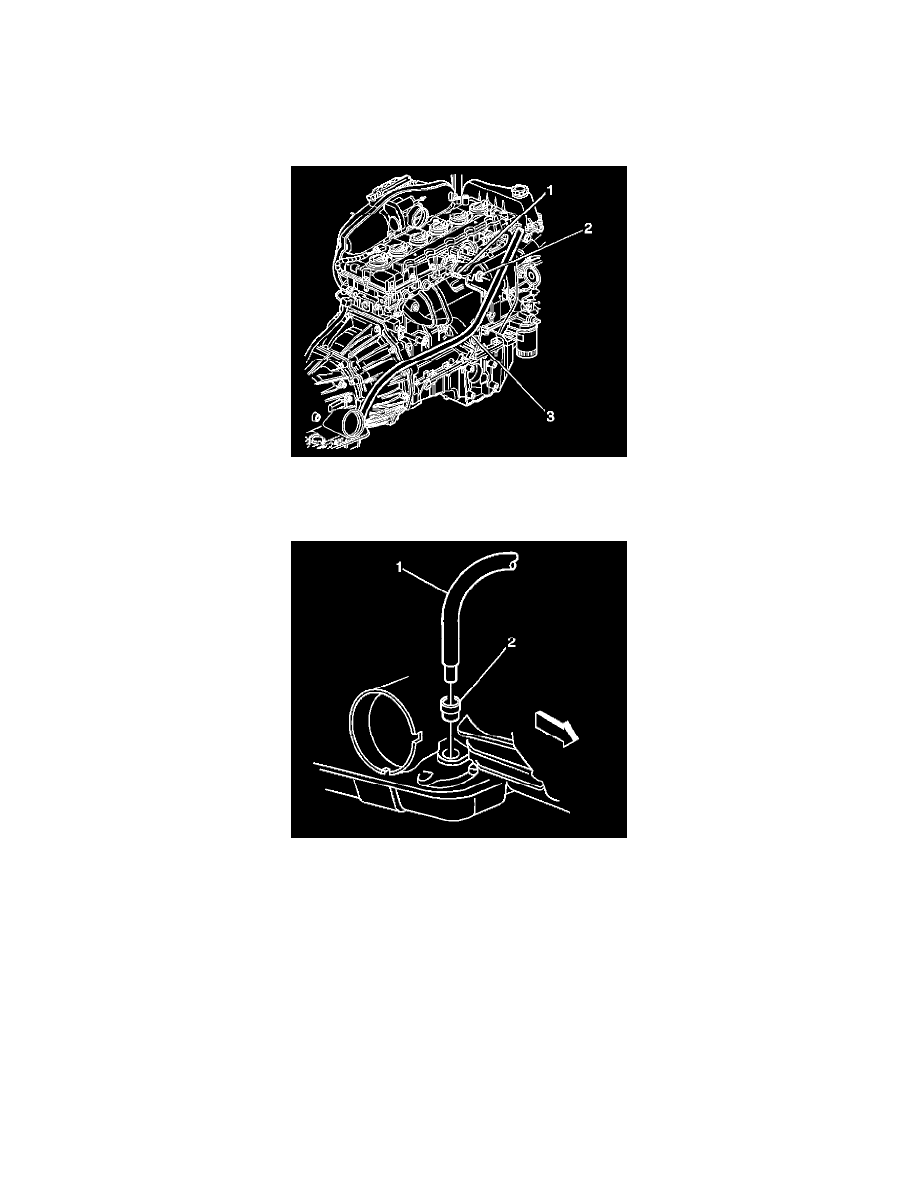

1. Remove the filler tube indicator.
2. Remove the nut (2) securing the filler tube to the exhaust manifold stud (1).
3. Raise the vehicle.
4. Position a drain pan under the vehicle.
5. Remove the filler tube (1) and seal (2) from the vehicle.
Installation Procedure
